Kimpex  |  SKU: SF-010-000424

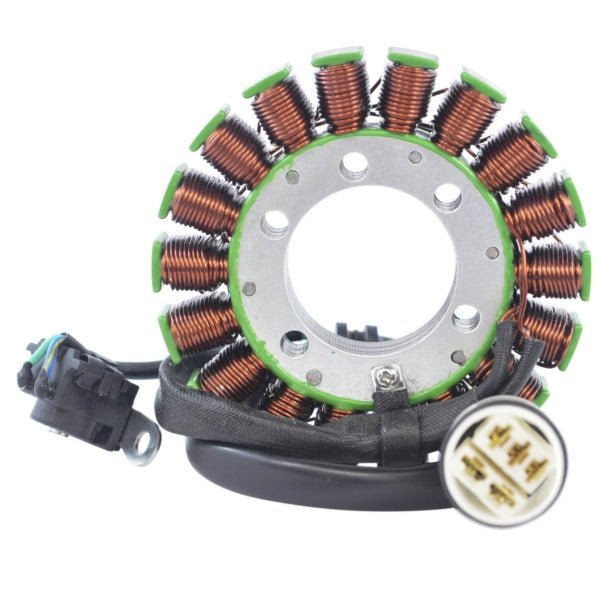

Kimpex Stator

$289.99
  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

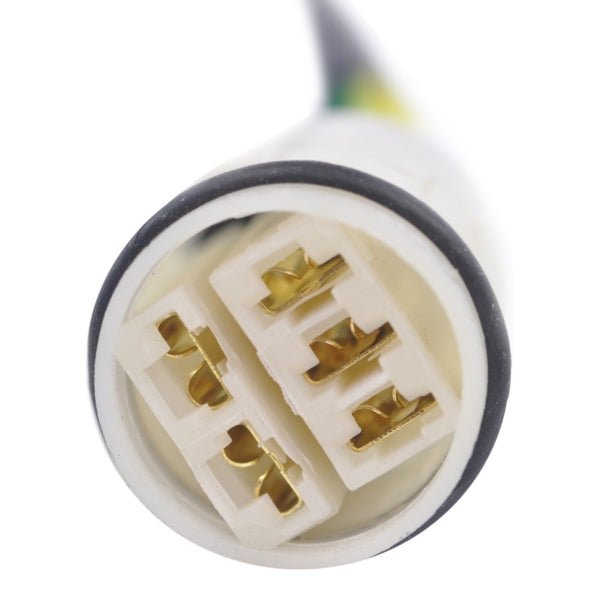

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000424
  • Compatible Brand: Fits Honda
  • External Diameter (mm): 107
  • Internal Diameter (mm): 41
  • Number: 285726
  • Number of connectors: 1
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 16

Fits 6 vehicles

Honda TRX420FE1 4x4 Rancher ES2007-2013
Honda TRX420FM1 4x4 Rancher2007-2013
Honda TRX420FPE 4x4 Rancher ES EPS2009-2013
Honda TRX420FPM 4x4 Rancher EPS2009-2013
Honda TRX420TE 2x4 Rancher ES2007-2013
Honda TRX420TM1 2x4 Rancher2007-2013
