Kimpex  |  SKU: SF-010-004018

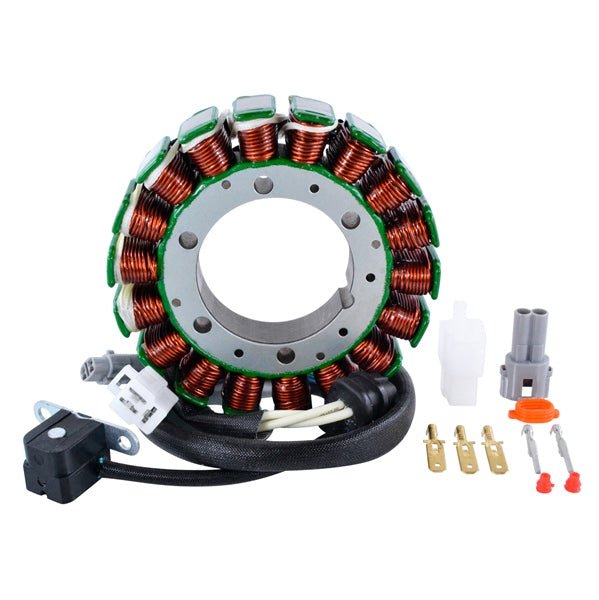

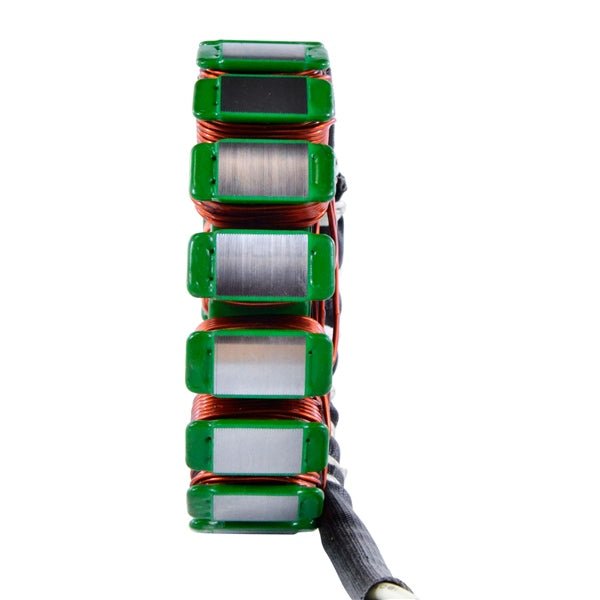

Kimpex Stator

$279.99
  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

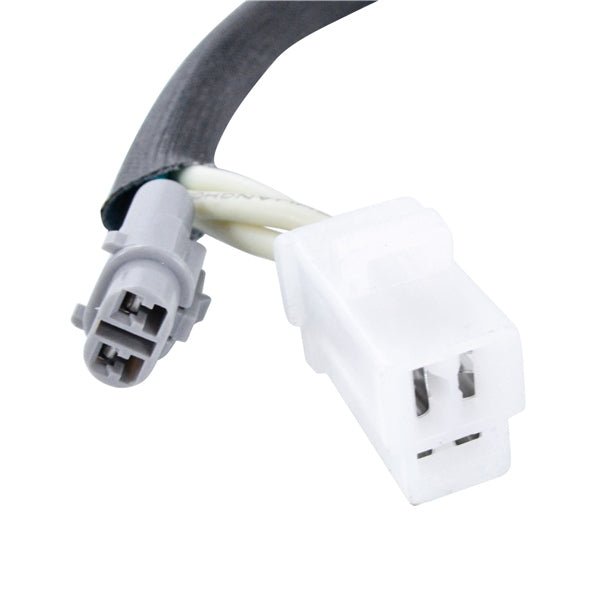

  • Connector included

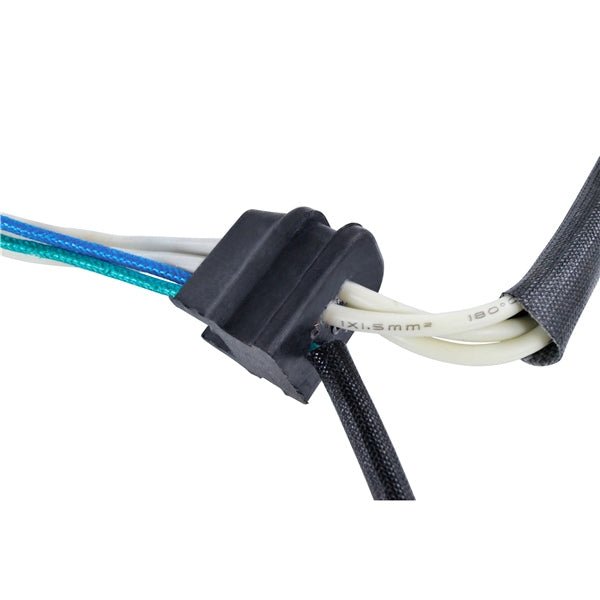

  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-004018
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 114
  • Internal Diameter (mm): 53
  • Notes: Includes: Connectors
  • Notes: Includes: Rubber grommet
  • Notes: The opposite connector is include (main harness side)
  • Notes: Includes: Pick up pulsar
  • Number: 225559
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 17

Fits 57 vehicles

Arctic Cat 1000 XT EPS2015-2017
Arctic Cat 500 Core2014
Arctic Cat 500 XT2014
Arctic Cat 550 Core2014
Arctic Cat 700 4x4 Diesel Super Duty2014
Arctic Cat 700 LTD PS2013-2014
Arctic Cat 700 XT EPS2014
Arctic Cat 700i Core2013-2014
Arctic Cat Alterra 1000 TRV XT EPS2017
Arctic Cat Alterra 5502016
Arctic Cat Alterra 550 TRV XT EPS2017
Arctic Cat Alterra 550 XT EPS2016
Arctic Cat Alterra 5702019-2020
Arctic Cat Alterra 570 EPS2019-2021
Arctic Cat Alterra 570 EPS SE2021
Arctic Cat Alterra 570 XT EPS2019
Arctic Cat Alterra 7002016-2019
Arctic Cat Alterra 700 EPS2019-2021
Arctic Cat Alterra 700 EPS SE2021
Arctic Cat Alterra 700 MudPro LTD EPS2018-2019
Arctic Cat Alterra 700 TBX EPS2018-2020
Arctic Cat Alterra 700 TRV EPS2020-2021
Arctic Cat Alterra 700 TRV XT EPS2017, 2019
Arctic Cat Alterra 700 VLX2018
Arctic Cat Alterra 700 VLX EPS2018
Arctic Cat Alterra 700 XT EPS2016-2019
Arctic Cat MudPro 1000 LTD EPS2013-2017
Arctic Cat MudPro 700 LTD EPS2013-2017
Arctic Cat Prowler 1000 XT EPS2015-2017
Arctic Cat Prowler 5002017-2022
Arctic Cat Prowler 500 HDX2014-2015
Arctic Cat Prowler 500 HDX LTD EPS2014
Arctic Cat Prowler 500 HDX XT2014, 2016-2017
Arctic Cat Prowler 550 XT2015
Arctic Cat Prowler 700 HDX EPS2013-2014
Arctic Cat Prowler 700 HDX Hunter SE EPS2016
Arctic Cat Prowler 700 HDX XT Crew EPS2016-2017
Arctic Cat Prowler 700 HDX XT EPS2015-2017
Arctic Cat Prowler 700 XT EPS2015-2017
Arctic Cat Prowler 700 XTX EPS2013-2014
Arctic Cat TBX 700 EPS2013-2017
Arctic Cat TBX 700 EPS SE2016
Arctic Cat TRV 1000 LTD EPS2013-2015
Arctic Cat TRV 1000 XT EPS2015
Arctic Cat TRV 5002014
Arctic Cat TRV 550 LTD EPS2014-2015
Arctic Cat TRV 550 XT EPS2014-2015
Arctic Cat TRV 700 LTD EPS2013-2015
Arctic Cat TRV 700 SE EPS2016
Arctic Cat TRV 700 XT EPS2013-2015
Arctic Cat VLX 7002017
Arctic Cat XR 5502015
Arctic Cat XR 550 LTD PS2015
Arctic Cat XR 550 XT PS2015
Arctic Cat XR 7002015
Arctic Cat XR 700 LTD PS2015
Arctic Cat XR 700 XT PS2015
