Kimpex  |  SKU: SF-010-000547

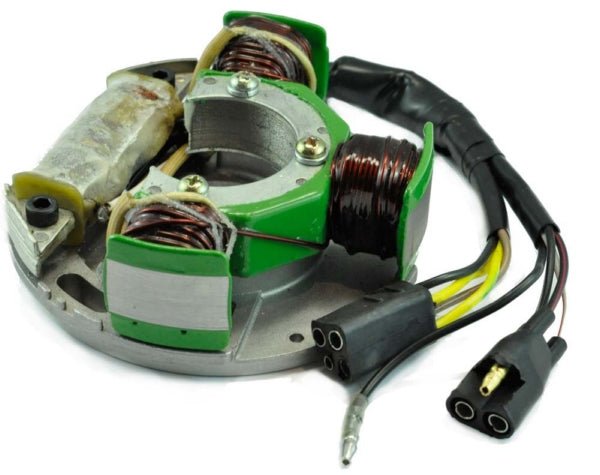

Kimpex Stator HD With A Backplate

$289.84 $340.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Backplate included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced..
  • SKU: SF-010-000547
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 112
  • Internal Diameter (mm): 41
  • Number: 280069
  • Number of connectors: 2
  • Number of terminals: 8
  • Number of wires: 8
  • Original Product Type: Stators
  • Thickness (mm): 17
MakeModelYears
ARCTIC CAT (TEXTRON)Bearcat 340 R F/C 136"2000
ARCTIC CAT (TEXTRON)Bearcat 440 I R F/C 136"1999-2000
ARCTIC CAT (TEXTRON)Bearcat 440 II R F/C 156"1999-2000
ARCTIC CAT (TEXTRON)Jag 440 Deluxe ES F/C 121"1999
ARCTIC CAT (TEXTRON)Jag 440 F/C 121"1999
ARCTIC CAT (TEXTRON)Panther 370 F/C 136"2001, 2004, 2007-2008
ARCTIC CAT (TEXTRON)Panther 370 R F/C 136"2003, 2005-2006
ARCTIC CAT (TEXTRON)Panther 440 ES/R 136"2000
ARCTIC CAT (TEXTRON)Panther 440 ES/R L/C 136"1999
ARCTIC CAT (TEXTRON)Panther 440 F/C 136"2001-2002
ARCTIC CAT (TEXTRON)Z 370 ES F/C 121"2000-2002
ARCTIC CAT (TEXTRON)Z 370 ES/R F/C 121"2003
ARCTIC CAT (TEXTRON)Z 370 F/C 121"1999-2007
ARCTIC CAT (TEXTRON)Z 370 LX ES/R F/C 121"2004-2006
ARCTIC CAT (TEXTRON)Z 440 ES F/C 121"2000-2002
ARCTIC CAT (TEXTRON)Z 440 ES/R F/C 121"2003
ARCTIC CAT (TEXTRON)Z 440 F/C 121"1999-2002
ARCTIC CAT (TEXTRON)Z 440 LX ES/R F/C 121"2004-2006
ARCTIC CAT (TEXTRON)Z 440 Sno Pro F/C1999
