Kimpex  |  SKU: SF-010-000535

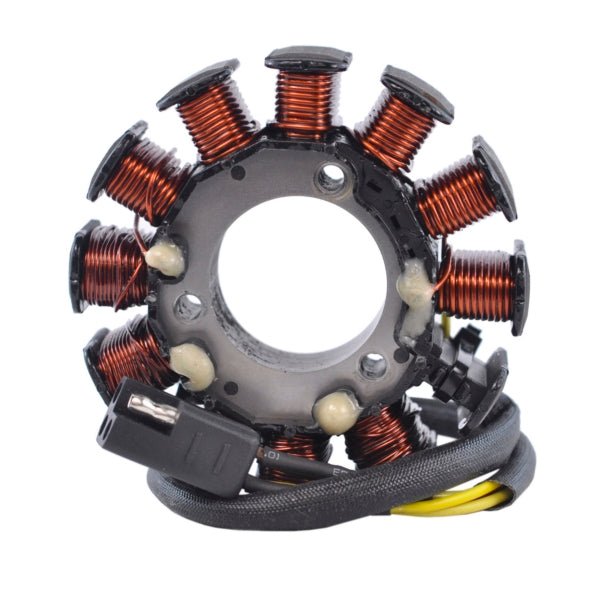

Kimpex Stator

$266.99 $295.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000535
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 100
  • Internal Diameter (mm): 38
  • Number: 201973
  • Number of connectors: 1
  • Number of terminals: 4
  • Number of wires: 4
  • Original Product Type: Stators
  • Thickness (mm): 20
MakeModelYears
ARCTIC CAT (TEXTRON)AC 440 Sno Pro L/C2004-2005
ARCTIC CAT (TEXTRON)AC 440 Sno Pro Mod Race Sled L/C2005
ARCTIC CAT (TEXTRON)F5 Firecat 500 128"2004-2006
ARCTIC CAT (TEXTRON)F6 Firecat 600 Carb 128"2004
ARCTIC CAT (TEXTRON)F7 Firecat 700 Carb 128"2004-2006
ARCTIC CAT (TEXTRON)F7 Firecat 700 Sno Pro Carb 128"2004-2006
ARCTIC CAT (TEXTRON)M7 Carb 153"2006
ARCTIC CAT (TEXTRON)Sabercat 600 Carb 128"2004
ARCTIC CAT (TEXTRON)Sabercat 600 LX ES/R Carb 128"2004
ARCTIC CAT (TEXTRON)Sabercat 600 LX ES/R EFI 128"2004
ARCTIC CAT (TEXTRON)Sno Pro 6002012-2013
ARCTIC CAT (TEXTRON)ZR6000 R SX 129"2015-2016
ARCTIC CAT (TEXTRON)ZR6000 Sno Pro2014
