Kimpex  |  SKU: SF-010-000498

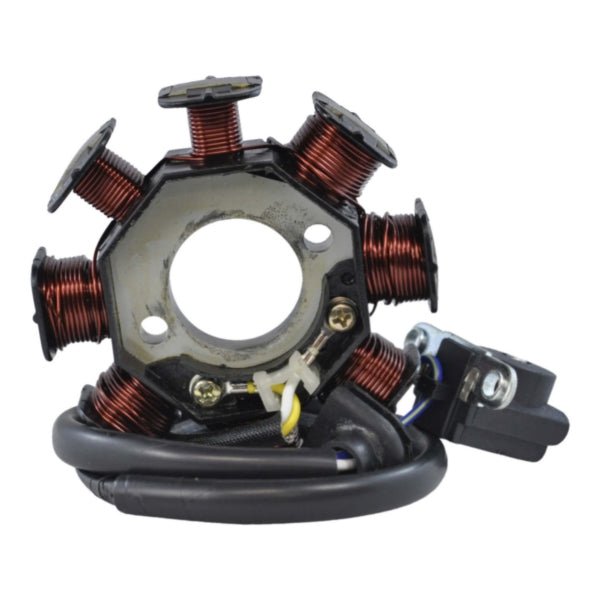

Kimpex Stator

$87.54 $102.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

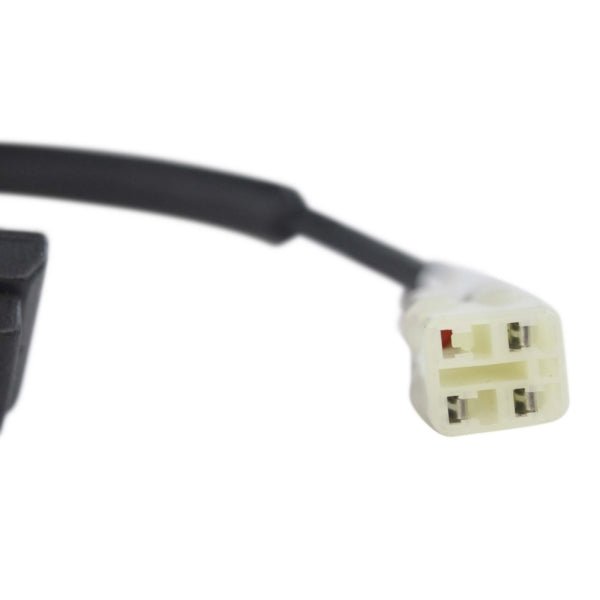

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000498
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 87
  • Internal Diameter (mm): 28
  • Number: 285006
  • Number of connectors: 1
  • Number of terminals: 3
  • Number of wires: 3
  • Original Product Type: Stators
  • Thickness (mm): 8
MakeModelYears
ARCTIC CAT (TEXTRON)90 2x4 Utility2011
ARCTIC CAT (TEXTRON)90 2x4 SE Utility2009
ARCTIC CAT (TEXTRON)90 2x4 Utility2006-2008, 2010, 2012-2016
ARCTIC CAT (TEXTRON)Alterra 902017-2024
ARCTIC CAT (TEXTRON)Alterra DVX 902018-2019
ARCTIC CAT (TEXTRON)DVX 90 SE Sport2009
ARCTIC CAT (TEXTRON)DVX 90 Sport2006-2008, 2010-2017
