Kimpex  |  SKU: SF-010-000378

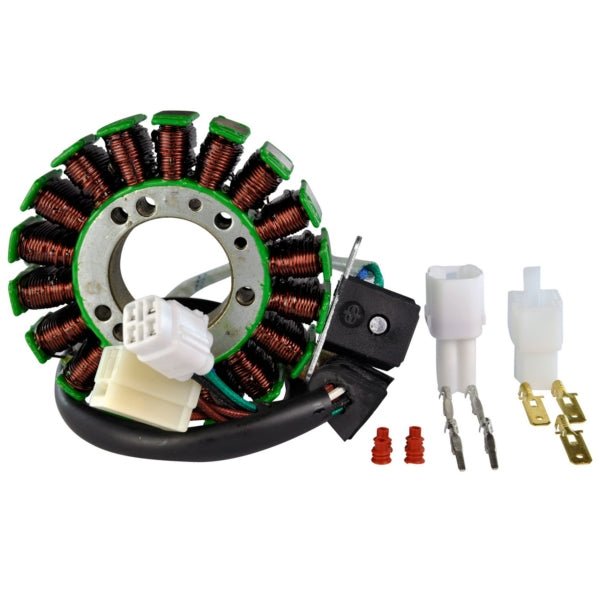

Kimpex Stator

$188.69 $221.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000378
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 94
  • Internal Diameter (mm): 35
  • Notes: 300 W
  • Number: 285687
  • Number of connectors: 2
  • Number of terminals: 7
  • Number of wires: 7
  • Original Product Type: Stators
  • Thickness (mm): 26
MakeModelYears
ARCTIC CAT (TEXTRON)DVX 400 2X4 Sport2004, 2006-2008
ARCTIC CAT (TEXTRON)DVX 400 2X4 Sport Tony Stewart2006-2007
KAWASAKIKSF400/KFX4002003-2006
SUZUKILT-Z400 QuadSport Z 2x42003-2007
SUZUKILT-Z400 QuadSport Z LTD 2x42008
Page 1 of 1
