Kimpex  |  SKU: SF-010-007232

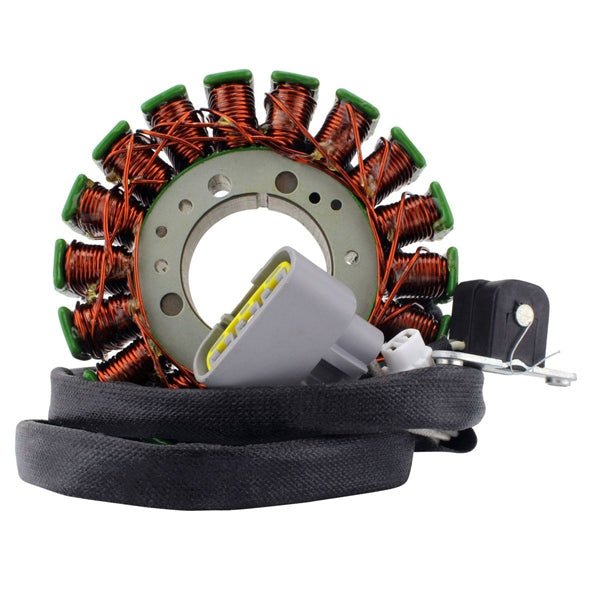

Kimpex Stator

$306.99 $340.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-007232
  • Compatible Brand: Fits Arctic cat
  • External Diameter (mm): 115
  • Internal Diameter (mm): 42
  • Number: 225905
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 23
MakeModelYears
ARCTIC CAT (TEXTRON)M9000 King Cat 162"2017-2019
ARCTIC CAT (TEXTRON)Riot 9000 1.6 146" Atac2023-2024
ARCTIC CAT (TEXTRON)XF9000 Cross Country LTD 137"2017-2019
ARCTIC CAT (TEXTRON)XF9000 CrossTour 146"2018
ARCTIC CAT (TEXTRON)XF9000 CrossTrek 137"2017-2018
ARCTIC CAT (TEXTRON)XF9000 High Country LTD 141"2017-2018
ARCTIC CAT (TEXTRON)XF9000 High Country LTD 2.25 153"2018-2019
ARCTIC CAT (TEXTRON)ZR9000 137 Thundercat ATAC EPS 1.25 137"2024
ARCTIC CAT (TEXTRON)ZR9000 LTD 129"2017
ARCTIC CAT (TEXTRON)ZR9000 LTD 137"2017, 2019
ARCTIC CAT (TEXTRON)ZR9000 LTD iACT 137"2019
ARCTIC CAT (TEXTRON)ZR9000 LXR 137"2017
ARCTIC CAT (TEXTRON)ZR9000 RR 129"2017
ARCTIC CAT (TEXTRON)ZR9000 RR 137"2017-2019
ARCTIC CAT (TEXTRON)ZR9000 Sno Pro 129"2018-2019
ARCTIC CAT (TEXTRON)ZR9000 Sno Pro 137"2017-2019
ARCTIC CAT (TEXTRON)ZR9000 Thundercat 1.25 QS3 137"2022
ARCTIC CAT (TEXTRON)ZR9000 Thundercat 1.25 QS3 EPS 137"2022
ARCTIC CAT (TEXTRON)ZR9000 Thundercat 137"2017-2021
ARCTIC CAT (TEXTRON)ZR9000 Thundercat EFI 1.25 EPS 137"2023
ARCTIC CAT (TEXTRON)ZR9000 Thundercat iACT 137"2019-2020
Page 1 of 1
