Kimpex | SKU:
SF-010-005896
15% off

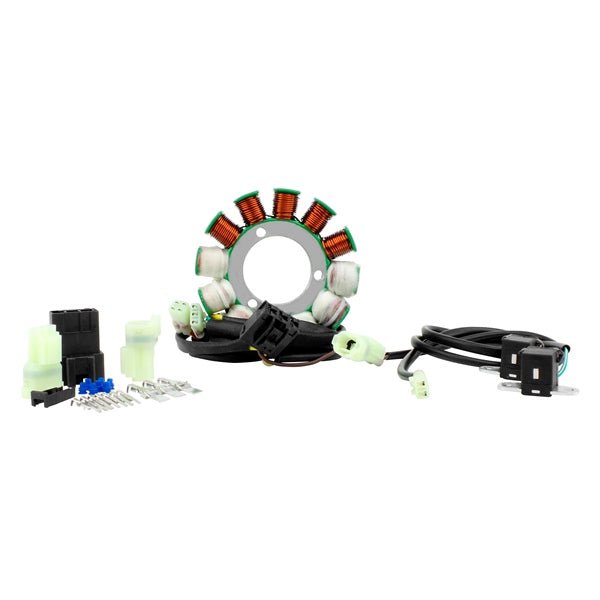

Kimpex Stator
Sale price
$251.59
Regular price
$295.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
- SKU: SF-010-005896
- Compatible Brand: Fits Arctic cat
- External Diameter (mm): 110
- Internal Diameter (mm): 45
- Notes: 12-Poles Stator
- Notes: The opposite connector is include (main harness side)
- Number: 225736
- Number of connectors: 3
- Number of terminals: 11
- Number of wires: 11
- Original Product Type: Stators
- Thickness (mm): 35
| Make | Model | Years |
|---|---|---|
| ARCTIC CAT (TEXTRON) | M6000 153" | 2015 |
| ARCTIC CAT (TEXTRON) | M6000 ES 153" | 2015 |
| ARCTIC CAT (TEXTRON) | M6000 LTD 153" | 2016 |
| ARCTIC CAT (TEXTRON) | M6000 LTD ES 153" | 2016 |
| ARCTIC CAT (TEXTRON) | M6000 SE 141" | 2016, 2018 |
| ARCTIC CAT (TEXTRON) | M6000 SE 153" | 2016, 2018 |
| ARCTIC CAT (TEXTRON) | M6000 SE ES 141" | 2016-2018 |
| ARCTIC CAT (TEXTRON) | M6000 SE ES 153" | 2016-2018 |
| ARCTIC CAT (TEXTRON) | M6000 Sno Pro 153" | 2014 |
| ARCTIC CAT (TEXTRON) | Norseman 6000 ES 154" | 2018 |
| ARCTIC CAT (TEXTRON) | Pantera 6000 ES 146" | 2018 |
| ARCTIC CAT (TEXTRON) | XF6000 Cross Country 141" | 2015 |
| ARCTIC CAT (TEXTRON) | XF6000 Cross Country LTD ES 137" | 2017-2018 |
| ARCTIC CAT (TEXTRON) | XF6000 CrossTour 141" | 2015 |
| ARCTIC CAT (TEXTRON) | XF6000 CrossTour 146" | 2018 |
| ARCTIC CAT (TEXTRON) | XF6000 CrossTrek 137" | 2016-2017 |
| ARCTIC CAT (TEXTRON) | XF6000 High Country 141" | 2016-2018 |
| ARCTIC CAT (TEXTRON) | XF6000 LXR ES 137" | 2015 |
| ARCTIC CAT (TEXTRON) | XF6000 Sno Pro ES 137" | 2015 |
| ARCTIC CAT (TEXTRON) | ZR6000 CrossTrek ES 137" | 2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 ES 129" | 2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 ES 137" | 2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 El Tigre 129" | 2014 |
| ARCTIC CAT (TEXTRON) | ZR6000 El Tigre ES 129" | 2014-2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 El Tigre ES 137" | 2017-2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 LTD ES 129" | 2015-2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 LTD ES 137" | 2016-2019 |
| ARCTIC CAT (TEXTRON) | ZR6000 LXR ES 129" | 2015-2017 |
| ARCTIC CAT (TEXTRON) | ZR6000 LXR ES 137" | 2016-2017 |
| ARCTIC CAT (TEXTRON) | ZR6000 RR ES 137" | 2019 |
| ARCTIC CAT (TEXTRON) | ZR6000 Sno Pro ES 129" | 2015-2018 |
| ARCTIC CAT (TEXTRON) | ZR6000 Sno Pro ES 137" | 2016-2018 |
