Kimpex | SKU:
R09-825
77% off

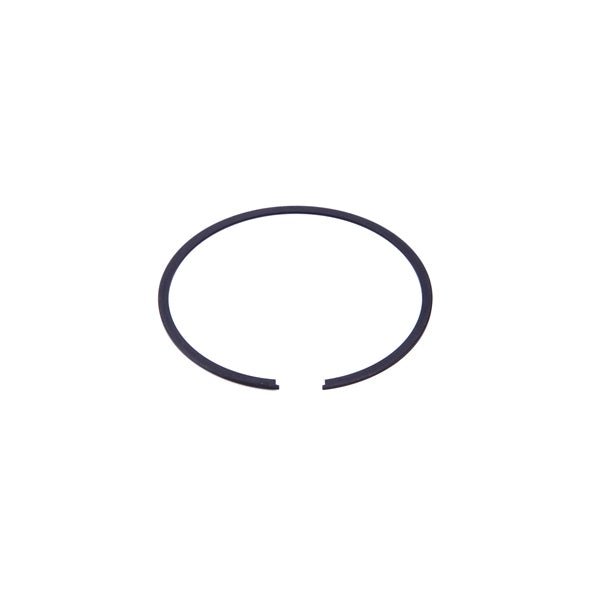

Kimpex Piston Replacement Ring Set
Sale price
$6.99
Regular price
$29.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: R09-825
- Bore - Oversize: Standard
- Bore - Standard: 68 mm
- Compatible Brand: Fits Yamaha
- Cylinders: 2
- Displacement: 493 cc
- Engine type: 2-Strokes
- Number: R09-825
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| YAMAHA | SX 500 121" | 2000-2001 |
| YAMAHA | VMAX 500 121" | 2001 |
| YAMAHA | VMAX 500 Deluxe 121" | 2000-2001 |
| YAMAHA | VMAX 500 Deluxe ES/R L/C 121" | 1994, 1999 |
| YAMAHA | VMAX 500 Deluxe ES/R L/C 136" | 1995-1996 |
| YAMAHA | VMAX 500 L/C 121" | 1994-1996 |
| YAMAHA | VMAX 500 LE ES L/C 121" | 1994-1995 |
| YAMAHA | VMAX 500 ST L/C 136" | 1994 |
| YAMAHA | VMAX 500 SX L/C 121" | 1999 |
| YAMAHA | VMAX 500 XT L/C 121" | 1996-1998 |
| YAMAHA | VMAX 500 XTC | 1998 |
| YAMAHA | VMAX 500 XTC Deluxe L/C | 1998 |
| YAMAHA | VMAX 500 XTC Electric Start L/C | 1997 |
| YAMAHA | VMAX 500 XTC L/C 121" | 1997 |
| YAMAHA | VMAX 500 XTC Reverse L/C | 1997 |
| YAMAHA | VMAX 500 XTR ES/R L/C 121" | 1998 |
| YAMAHA | VMAX 500 121" | 2000 |
| YAMAHA | VMAX 500 L/C 121" | 1999 |
| YAMAHA | Venture 500 136" | 2000-2001 |
| YAMAHA | Venture 500 ES/R L/C 136" | 1997-1999 |
