Kimpex | SKU:
R09-789
77% off

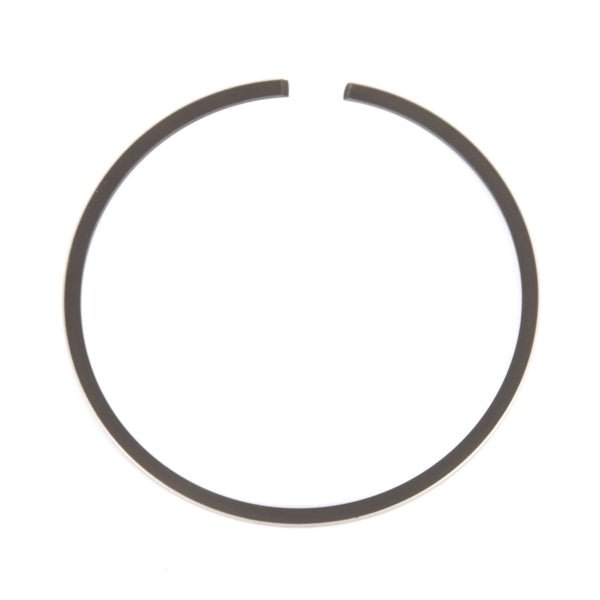

Kimpex Piston Replacement Ring Set
Sale price
$6.99
Regular price
$29.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: R09-789
- Bore - Oversize: Standard
- Bore - Standard: 81.85 mm
- Compatible Brand: Fits Ski-doo
- Cylinders: 2
- Displacement: 799 cc
- Engine type: 2-Strokes
- Number: 420815416
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| SKI-DOO | Backcountry 850 X e-tec REV-G4 R 146" | 2019-2021 |
| SKI-DOO | Backcountry 850 X-RS e-tec REV-G4 ES/R 146" | 2019-2021 |
| SKI-DOO | Backcountry 850 X-RS e-tec REV-G4 ES/R 154" | 2020-2021 |
| SKI-DOO | Backcountry 850 e-tec REV-G4 ES/R 146" | 2019-2021 |
| SKI-DOO | Expedition 600 LE e-tec REV-XU ES/R 154" | 2016-2017 |
| SKI-DOO | Expedition 600 SE e-tec REV-XU ES/R 154" | 2016-2017 |
| SKI-DOO | Expedition 800 Xtreme e-tec REV-XU ES/R 154" | 2016-2019 |
| SKI-DOO | Freeride 800 Racing e-tec REV-XP R 154" | 2012-2013 |
| SKI-DOO | Freeride 800 e-tec REV-XM RS ES/R 137" | 2015-2017 |
| SKI-DOO | Freeride 800 e-tec REV-XM RS R 137" | 2014 |
| SKI-DOO | Freeride 800 e-tec REV-XM RS R 146" | 2014-2017 |
| SKI-DOO | Freeride 800 e-tec REV-XM RS R 154" | 2014-2017 |
| SKI-DOO | Freeride 800 e-tec REV-XP R 137" | 2012-2013 |
| SKI-DOO | Freeride 800 e-tec REV-XP R 146" | 2012-2013 |
| SKI-DOO | Freeride 800 e-tec REV-XP R 154" | 2012-2013 |
| SKI-DOO | Freeride 850 Turbo e-tec REV-G4 R 2.5 154" | 2021 |
| SKI-DOO | Freeride 850 Turbo e-tec REV-G4 R 2.5 165" | 2021 |
| SKI-DOO | Freeride 850 Turbo e-tec REV-G4 R 3.0 154" | 2021 |
| SKI-DOO | Freeride 850 Turbo e-tec REV-G4 R 3.0 165" | 2021 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 1.75 137" | 2018-2020 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 2.25 137" | 2018-2020 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 2.5 137" | 2020 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 2.5 146" | 2018-2019, 2021 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 2.5 154" | 2018-2021 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 2.5 165" | 2018-2021 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 3.0 154" | 2018-2021 |
| SKI-DOO | Freeride 850 e-tec REV-G4 R 3.0 165" | 2018-2021 |
| SKI-DOO | Freeride 850 e-tec S-38 REV-G4 R 2.5 154" | 2018-2019 |
| SKI-DOO | GSX 800 SE e-tec REV-XR ES/R 137" | 2012-2015 |
| SKI-DOO | MXZ 600 Blizzard e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 600 Sport Carb REV-XP R 120" | 2016-2017 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 120" | 2016 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 129" | 2017 |
| SKI-DOO | MXZ 600 X e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 600 X-RS Iron Dog e-tec REV-XS RS R 129" | 2017 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XS RS ES/R 129" | 2016 |
| SKI-DOO | MXZ 800 Blizzard e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 800 Iron Dog e-tec REV-XS RS R 128" | 2015 |
| SKI-DOO | MXZ 800 TNT e-tec REV-XP R 120" | 2011-2012 |
| SKI-DOO | MXZ 800 TNT e-tec REV-XS ES/R 120" | 2015-2016 |
| SKI-DOO | MXZ 800 TNT e-tec REV-XS R 120" | 2013-2014 |
| SKI-DOO | MXZ 800 X e-tec REV-XP ES/R 120" | 2012 |
| SKI-DOO | MXZ 800 X e-tec REV-XP R 120" | 2011 |
| SKI-DOO | MXZ 800 X e-tec REV-XS ES/R 120" | 2013-2015 |
| SKI-DOO | MXZ 800 X e-tec REV-XS ES/R 129" | 2016 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XP R 120" | 2011-2012 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XRS R 120" | 2013 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS ES/R 129" | 2017 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS R 120" | 2015 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS R 129" | 2016 |
| SKI-DOO | MXZ 800R X E-TEC | 2010 |
| SKI-DOO | MXZ 850 Blizzard e-tec REV-G4 ES/R 129" | 2018-2019 |
| SKI-DOO | MXZ 850 TNT e-tec REV-G4 ES/R 129" | 2017-2021 |
| SKI-DOO | MXZ 850 X e-tec REV-G4 ES/R 129" | 2017-2021 |
| SKI-DOO | MXZ 850 X-RS e-tec REV-G4 ES/R 129" | 2018-2021 |
| SKI-DOO | Renegade 600 Adrenaline e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 600 Enduro e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 Sport carb REV-XP ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 X e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 800 Adrenaline e-tec REV-XP R 137" | 2011-2013 |
| SKI-DOO | Renegade 800 Adrenaline e-tec REV-XS ES/R 137" | 2014-2016 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XP R 137" | 2011-2012 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XS ES/R 137" | 2015 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XS R 137" | 2013-2014 |
| SKI-DOO | Renegade 800 Backcountry e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Backcountry e-tec REV-XP R 137" | 2011-2012 |
| SKI-DOO | Renegade 800 Backcountry e-tec REV-XS R 137" | 2013-2015 |
| SKI-DOO | Renegade 800 Enduro e-tec REV-XS ES/R 137" | 2016-2018 |
| SKI-DOO | Renegade 800 X e-tec REV-XP ES/R 137" | 2012 |
| SKI-DOO | Renegade 800 X e-tec REV-XP R 137" | 2011 |
| SKI-DOO | Renegade 800 X e-tec REV-XS ES/R 137" | 2013-2016 |
| SKI-DOO | Renegade 800 X-RS e-tec REV-XS ES/R 137" | 2015-2017 |
| SKI-DOO | Renegade 850 Adrenaline e-tec REV-G4 ES/R 137" | 2017-2021 |
| SKI-DOO | Renegade 850 Backcountry X e-tec REV-G4 R 146" | 2018 |
| SKI-DOO | Renegade 850 Backcountry e-tec REV-G4 R 146" | 2018 |
| SKI-DOO | Renegade 850 Enduro e-tec REV-G4 ES/R 137" | 2019-2021 |
| SKI-DOO | Renegade 850 X e-tec REV-G4 ES/R 137" | 2017-2021 |
| SKI-DOO | Renegade 850 X-RS e-tec REV-G4 ES/R 137" | 2018, 2020-2021 |
| SKI-DOO | Renegade 850 X-RS e-tec REV-XS ES/R 137" | 2019 |
| SKI-DOO | Summit 600 CARB Sport p-tek REV-XP R 146" | 2016-2017 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 Burton e-tec 2-up REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 Everest e-tec 146" REV-XP R | 2011 |
| SKI-DOO | Summit 800 Everest e-tec REV-XP R 154" | 2011 |
| SKI-DOO | Summit 800 Freeride e-tec REV-XP R 154" | 2011 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 163" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 174" | 2016 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 146" | 2013-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 154" | 2013-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 163" | 2013-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XP R 146" | 2012 |
| SKI-DOO | Summit 800 SP e-tec REV-XP R 154" | 2012 |
| SKI-DOO | Summit 800 SP e-tec REV-XP R 163" | 2012 |
| SKI-DOO | Summit 800 Sport carb REV-XP R 154" | 2016 |
| SKI-DOO | Summit 800 Sport p-tek REV-XP R 154" | 2012-2015 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 163" | 2015-2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 174" | 2015-2016 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 146" | 2013-2015 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 154" | 2013-2015 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 163" | 2013-2015 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Summit 800 X e-tec REV-XP R 146" | 2011-2012 |
| SKI-DOO | Summit 800 X e-tec REV-XP R 154" | 2011-2012 |
| SKI-DOO | Summit 800 X e-tec REV-XP R 163" | 2011-2012 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 146" | 2018 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 154" | 2017 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 165" | 2017 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 2.5 146" | 2019-2021 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 2.5 154" | 2018-2021 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 2.5 165" | 2018-2021 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 3.0 154" | 2018-2021 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 3.0 165" | 2018-2021 |
| SKI-DOO | Summit 850 SP e-tec REV-G4 R 3.0 175" | 2018-2021 |
| SKI-DOO | Summit 850 X Expert Turbo e-tec REV-G4 R 2.5 154" | 2021 |
| SKI-DOO | Summit 850 X Expert Turbo e-tec REV-G4 R 3.0 165" | 2021 |
| SKI-DOO | Summit 850 X Expert Turbo e-tec REV-G4 R 3.0 175" | 2021 |
| SKI-DOO | Summit 850 X Expert e-tec REV-G4 R 2.5 154" | 2021 |
| SKI-DOO | Summit 850 X Expert e-tec REV-G4 R 3.0 154" | 2020 |
| SKI-DOO | Summit 850 X Expert e-tec REV-G4 R 3.0 165" | 2020-2021 |
| SKI-DOO | Summit 850 X Expert e-tec REV-G4 R 3.0 175" | 2021 |
| SKI-DOO | Summit 850 X Turbo e-tec REV-G4 R 2.5 154" | 2021 |
| SKI-DOO | Summit 850 X Turbo e-tec REV-G4 R 3.0 154" | 2021 |
| SKI-DOO | Summit 850 X Turbo e-tec REV-G4 R 3.0 165" | 2021 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 154" | 2017 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 165" | 2017 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 2.5 154" | 2018-2021 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 2.5 165" | 2018-2021 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 3.0 154" | 2018-2021 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 3.0 165" | 2018-2021 |
| SKI-DOO | Summit 850 X e-tec REV-G4 R 3.0 175" | 2018-2020 |
