Kimpex  |  SKU: R09-772-04

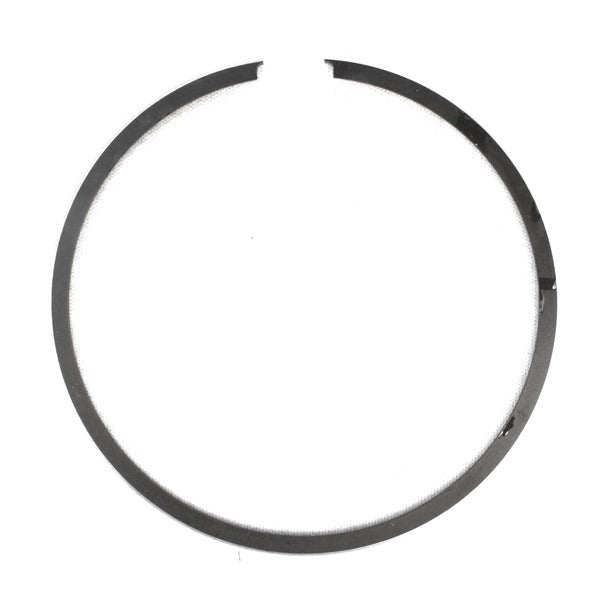

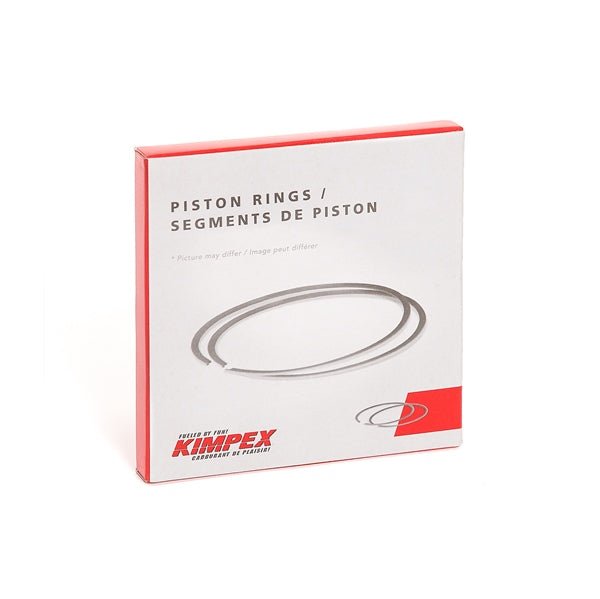

Kimpex Piston Replacement Ring Set

$23.99 $25.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
  • SKU: R09-772-04
  • Bore - Oversize: 1.00 mm
  • Bore - Standard: 76 mm
  • Compatible Brand: Fits Ski-doo
  • Cylinders: 2
  • Displacement: 617 cc
  • Engine type: 2-Strokes
  • Number: R09-772-04
  • Original Product Type: Piston Rings
MakeModelYears
SKI-DOOFormula 500 Deluxe R L/C 121"1997
SKI-DOOFormula 583 L/C 121"1997
SKI-DOOFormula Deluxe 583 ES/R L/C 121"1998
SKI-DOOFormula MXZ 583 L/C 121"1996
SKI-DOOFormula Mach 1 583 L/C 121"1989-1990
SKI-DOOFormula Mach 1 XTC 583 L/C1990
SKI-DOOFormula Plus 580 E L/C 121"1992-1993
SKI-DOOFormula Plus 580 L/C 121"1992-1993
SKI-DOOFormula Plus 580 L/C EFI 121"1993
SKI-DOOFormula Plus 580 XTC E L/C 138"1992
SKI-DOOFormula Plus 580 XTC L/C 138"1992-1993
SKI-DOOFormula Plus 583 X L/C 121"1992-1993
SKI-DOOFormula Plus II 580 L/C 121"1993
SKI-DOOFormula STX 583 L/C 121"1994-1996
SKI-DOOFormula STX 583 LT L/C 136"1996
SKI-DOOFormula STX II 583 L/C 121"1994
SKI-DOOFormula STX LT 583 L/C 136"1995
SKI-DOOFormula Z 583 L/C 121"1994-1996, 1998
SKI-DOOGrand Touring 580 ES/R L/C 136"1995-1996
SKI-DOOGrand Touring 583 ES/R L/C 121"1994
SKI-DOOGrand Touring 583 ES/R L/C 136"1997-1998
SKI-DOOGrand Touring 583 L/C 121"1993
SKI-DOOGrand Touring 583 XTC ES/R L/C 138"1994
SKI-DOOMXZ 583 L/C 121"1998
SKI-DOOMach 1 617 L/C 121"1991-1992
SKI-DOOMach 1 617 X L/C1991
SKI-DOOMach 1 617 X L/C 121"1992
SKI-DOOMach 1 617 XTC II L/C 138"1992
SKI-DOOMach 1 617 XTC L/C 138"1991-1992
SKI-DOOSummit 470 L/C 136"1994
SKI-DOOSummit 583 L/C 136"1994-1998
SKI-DOOSummit 670 L/C 136"1995
