Kimpex | SKU:
R09-761
Sold out
8% off

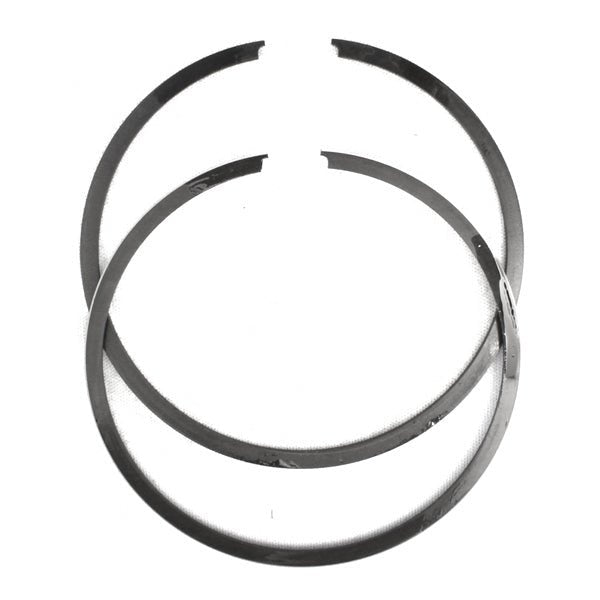

Kimpex Piston Replacement Ring Set
Sale price
$22.99
Regular price
$24.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: R09-761
- Bore - Oversize: Standard
- Bore - Standard: 69.5 mm
- Compatible Brand: Fits Ski-doo
- Compatible Brand: Fits Moto-ski
- Cylinders: 2
- Displacement: 436.6 cc
- Engine type: 2-Strokes
- Number: R09-761
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| MOTO-SKI | Futura 444 L/C | 1979 |
| MOTO-SKI | Futura 464 L/C | 1980-1982 |
| MOTO-SKI | Sonic | 1984 |
| MOTO-SKI | Ultra Sonic | 1984 |
| SKI-DOO | Elite 444 E L/C 120" | 1980 |
| SKI-DOO | Elite 444 L/C | 1978 |
| SKI-DOO | Elite 454 L/C | 1979 |
| SKI-DOO | Ellte 450 E L/C 120" | 1979 |
| SKI-DOO | Everest 444 E L/C 124" | 1978-1979 |
| SKI-DOO | Everest 464 E L/C 124" | 1980-1983 |
| SKI-DOO | Formula MX 467 E L/C 121" | 1991 |
| SKI-DOO | Formula MX 467 L/C 114" | 1985-1989 |
| SKI-DOO | Formula MX 467 L/C 121" | 1990-1993 |
| SKI-DOO | Formula MX 467 LT 2-Up L/C | 1990 |
| SKI-DOO | Formula MX 467 LT L/C 124" | 1987-1989 |
| SKI-DOO | Formula MX 467 LT L/C 138" | 1990 |
| SKI-DOO | Formula MX 467 LT L/C High Altitude 124" | 1986 |
| SKI-DOO | Formula MX 467 X L/C | 1991 |
| SKI-DOO | Formula MX 467 XTC E L/C 138" | 1991 |
| SKI-DOO | Formula MX 467 XTC E SS/SR L/C | 1991 |
| SKI-DOO | Formula MX 467 XTC L/C 138" | 1991 |
| SKI-DOO | Formula MX 467 XTC R L/C 138" | 1992-1993 |
| SKI-DOO | Formula MX 467 XTC SS/SR L/C | 1991 |
| SKI-DOO | Formula MX 470 L/C 121" | 1994-1995 |
| SKI-DOO | Formula MX II 467 L/C 121" | 1993 |
| SKI-DOO | Formula MXZ 467 L/C 121" | 1993 |
| SKI-DOO | Formula MXZ 470 L/C 121" | 1994 |
| SKI-DOO | Formula MXZ 470 X L/C | 1994 |
| SKI-DOO | Formula SP 462 L/C 114" | 1985-1986 |
| SKI-DOO | Formula SS 462 L/C 114" | 1985 |
| SKI-DOO | Formula ST 470 F/C 121" | 1994 |
| SKI-DOO | Grand Touring 470 ES/R L/C 136" | 1995 |
| SKI-DOO | SS-25 462 L/C 114" | 1984 |
| SKI-DOO | Safari GLX 467 L/C 124" | 1990-1992 |
| SKI-DOO | Safari LC 467 L/C | 1990 |
| SKI-DOO | Safari LCE 467 L/C 124" | 1991-1992 |
| SKI-DOO | Summit 470 L/C 136" | 1994 |
Page 1 of 1
