Kimpex  |  SKU: R09-741-02

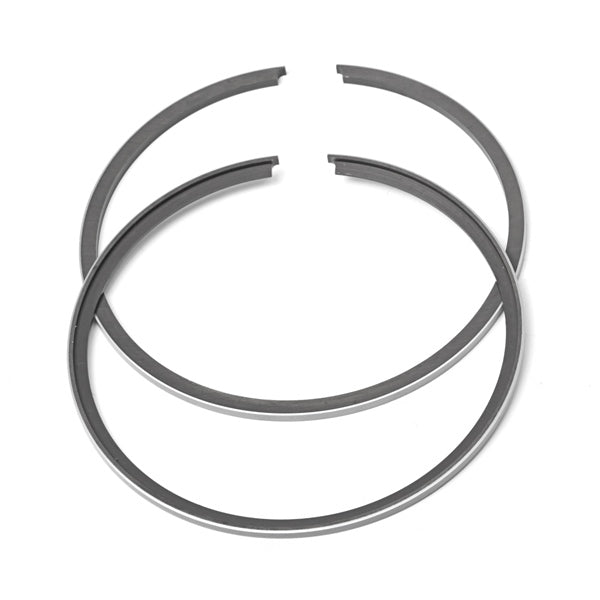

Kimpex Piston Replacement Ring Set

$22.99 $24.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
  • SKU: R09-741-02
  • Bore - Oversize: 0.50 mm
  • Bore - Standard: 72 mm
  • Compatible Brand: Fits Ski-doo
  • Compatible Brand: Fits Moto-ski
  • Cylinders: 1
  • Displacement: 269 cc
  • Engine type: 2-Strokes
  • Number: R09-741-02
  • Original Product Type: Piston Rings
MakeModelYears
MOTO-SKIFutura 5001980-1982
MOTO-SKIMirage I1980-1982
MOTO-SKIMirage II1980-1982
SKI-DOOAlpine 503 ER F/C 139"1983
SKI-DOOAlpine 503 F/C 139"1984-1986
SKI-DOOBlizzard 5500 503 F/C 114"1979-1981
SKI-DOOBlizzard 5500 MX 503 F/C1981
SKI-DOOBlizzard 5500 MX 503 F/C 114"1982-1984
SKI-DOOBlizzard 9700 534 L/C 114"1983
SKI-DOOCitation 3500 277 F/C 106"1980-1984
SKI-DOOCitation LS 250 F/C 102"1985-1986
SKI-DOOCitation LS/E 250 F/C 102"1985-1986
SKI-DOOEverest 500 E F/C 124"1981-1983
SKI-DOOEverest 500 F/C 124"1981-1983
SKI-DOOFormula Deluxe 500 ES/R F/C 121"1999-2001
SKI-DOOFormula Plus 537 L/C 114"1985-1986
SKI-DOOFormula SL 500 F/C 121"1996-1999
SKI-DOOFreestyle 300 R F/C 121"2006
SKI-DOOFreestyle Session 300 RF R F/C 121"2007-2008
SKI-DOOGrand Touring 500 ES/R F/C 136"2002
SKI-DOOLegend 500 ES/R F/C 121"2002
SKI-DOOMXZ 500 R F/C 121"2001-2002
SKI-DOOSafari Grand Luxe 532 L/C 124"1986
SKI-DOOSkandic 277 F/C 139"1983
SKI-DOOSkandic 500 ES/R F/C 136"1999-2000
SKI-DOOSkandic 500 R F/C 136"1996-1998
SKI-DOOSkandic 500 SWT ES/R F/C 154"1997
SKI-DOOSkandic 500 SWT ES/R F/C 156"1999-2003
SKI-DOOSkandic 500 Sport R F/C 136"2003
SKI-DOOSkandic 500 WT ES/R F/C 154"1996-1998
SKI-DOOSkandic 500 WT ES/R F/C 156"1999-2003
SKI-DOOSkandic 500 WT ES/R L/C 156"1999-2000
SKI-DOOSkandic SWT 500 ES/R F/C 154"1998
SKI-DOOSkandic Tundra 300F R 136"2006-2009
SKI-DOOSummit 500 R F/C 136"2001-2002
SKI-DOOTouring 440 LE ES/R F/C 136"1999-2000
SKI-DOOTouring 500 Cargo ES/R F/C 136"2001
SKI-DOOTouring 500 ES/R F/C 136"2001
SKI-DOOTouring 500 SLE ES/R F/C 136"1996-2000
SKI-DOOTundra 250 F/C 124"1986
SKI-DOOTundra 250 F/C 139"1985
SKI-DOOTundra II LT 277 F/C 139"1996-1998
SKI-DOOTundra LT 250 F/C 139"1985-1986
SKI-DOOTundra LT 277 F/C 139"1999
SKI-DOOTundra R 277 F/C 139"1998-2000, 2002-2005
