Kimpex | SKU:
420-815-150
7% off

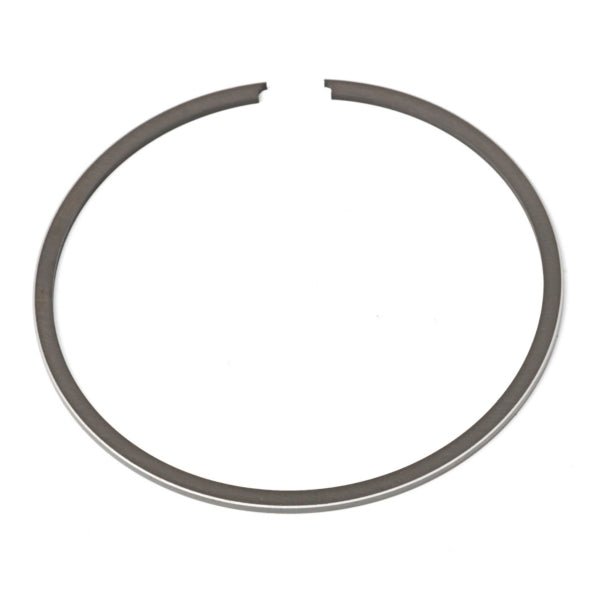

Kimpex Piston Replacement Ring Set
Sale price
$25.99
Regular price
$27.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: 420-815-150
- Bore - Oversize: Standard
- Bore - Standard: 76 mm
- Compatible Brand: Fits Ski-doo
- Cylinders: 2
- Displacement: 497 cc
- Engine type: 2-Strokes
- Number: R09-785
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| SKI-DOO | Expedition 550 Sport REV R F/C 136" | 2005-2006 |
| SKI-DOO | Expedition 550 Sport REV-XP ES/R F/C 154" | 2012-2020 |
| SKI-DOO | Expedition 550 Sport REV-XU ES/R F/C 154" | 2011 |
| SKI-DOO | Expedition 550 Sport RF ES/R F/C 136" | 2007-2008 |
| SKI-DOO | Formula Deluxe 600 ES/R L/C 121" | 2000-2001 |
| SKI-DOO | Formula Deluxe 600 GSE ES/R L/C 121" | 2001 |
| SKI-DOO | Formula Z 600 L/C 121" | 2000 |
| SKI-DOO | Freestyle Back Country 550 RF R F/C 136" | 2007-2009 |
| SKI-DOO | Freestyle Park 550 RF R F/C 121" | 2007-2008 |
| SKI-DOO | Freestyle Session 550 RF R F/C 121" | 2007 |
| SKI-DOO | GSX 500 Sport SS 1+1 REV ES/R 121" | 2004 |
| SKI-DOO | GSX 500 Sport SS REV ES/R L/C 121" | 2004-2007 |
| SKI-DOO | GSX 500 Sport SS REV-XP ES/R L/C 120" | 2008-2009 |
| SKI-DOO | GSX 550 REV ES/R F/C 121" | 2005-2009 |
| SKI-DOO | GSX 550 Sport REV-XP ES/R F/C 120" | 2010 |
| SKI-DOO | GSX 600 Sport REV-XP ES/R 120" | 2010 |
| SKI-DOO | GTX 500 Sport SS Carb REV-XP ES/R L/C 137" | 2009 |
| SKI-DOO | GTX 500 Sport SS REV ES/R L/C 136" | 2005-2008 |
| SKI-DOO | GTX 550 REV ES/R F/C 136" | 2005-2009 |
| SKI-DOO | Grand Touring 550 ES/R F/C 136" | 2003 |
| SKI-DOO | Grand Touring 550 Sport REV-XP ES/R F/C 137" | 2010-2015 |
| SKI-DOO | Grand Touring 600 ES/R L/C 136" | 2000-2001 |
| SKI-DOO | Grand Touring 600 GS ES/R L/C 136" | 2002 |
| SKI-DOO | Grand Touring 600 SE ES/R L/C 136" | 2002-2003 |
| SKI-DOO | Grand Touring 600 Sport Carb REV-XP ES/R 137" | 2013-2014 |
| SKI-DOO | Grand Touring 600 Sport ES/R L/C 136" | 2002-2003 |
| SKI-DOO | Grand Touring 600 Sport REV-XP ES/R 137" | 2010-2012 |
| SKI-DOO | Legend 500 GT Sport SS ES/R 136" | 2004 |
| SKI-DOO | Legend 500 Sport ES/R L/C 121" | 2003 |
| SKI-DOO | Legend 500 Sport RER L/C 121" | 2002 |
| SKI-DOO | Legend 500 Sport SS ES/R 121" | 2004 |
| SKI-DOO | Legend 550 ES/R F/C 121" | 2003-2004 |
| SKI-DOO | Legend 550 GT ES/R F/C 121" | 2004 |
| SKI-DOO | Legend 600 GS ES/R L/C 121" | 2002 |
| SKI-DOO | Legend 600 SE ES/R L/C 121" | 2002-2003 |
| SKI-DOO | Legend 600 Sport ES/R L/C 121" | 2002-2003 |
| SKI-DOO | Legend 700 Sport ES/R L/C 121" | 2003 |
| SKI-DOO | MXZ 500 Adrenaline SS REV R L/C 121" | 2004-2007 |
| SKI-DOO | MXZ 500 TNT SS REV-XP R 120" | 2008-2009 |
| SKI-DOO | MXZ 500 Trail SS REV L/C 121" | 2004 |
| SKI-DOO | MXZ 500 Trail SS REV R L/C 121" | 2004-2007 |
| SKI-DOO | MXZ 500 Trail SS REV-XP R 120" | 2008-2009 |
| SKI-DOO | MXZ 550 R F/C 121" | 2003-2004 |
| SKI-DOO | MXZ 550 REV R F/C 121" | 2005-2008 |
| SKI-DOO | MXZ 550 Sport REV-XP R F/C 120" | 2011-2014 |
| SKI-DOO | MXZ 550 TNT REV-XP R F/C 120" | 2010-2012 |
| SKI-DOO | MXZ 550 X REV R F/C 121" | 2006-2009 |
| SKI-DOO | MXZ 600 Adrenaline L/C 121" | 2001 |
| SKI-DOO | MXZ 600 Adrenaline R L/C 121" | 2002-2003 |
| SKI-DOO | MXZ 600 Blizzard e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 600 L/C 121" | 1999-2001 |
| SKI-DOO | MXZ 600 Renegade R L/C 136" | 2002-2003 |
| SKI-DOO | MXZ 600 Special Config. 121" | 2000 |
| SKI-DOO | MXZ 600 Sport Carb REV-XP ES/R 120" | 2018-2020 |
| SKI-DOO | MXZ 600 Sport Carb REV-XP R 120" | 2010-2011, 2015-2017 |
| SKI-DOO | MXZ 600 Sport L/C 121" | 2002 |
| SKI-DOO | MXZ 600 Sport R L/C 121" | 2002 |
| SKI-DOO | MXZ 600 Sport REV R L/C 121" | 2003 |
| SKI-DOO | MXZ 600 Sport REV-XP R 120" | 2012-2014 |
| SKI-DOO | MXZ 600 TNT Carb REV-XP R 120" | 2010 |
| SKI-DOO | MXZ 600 TNT REV-XP R 120" | 2011-2012 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 120" | 2016 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 129" | 2017 |
| SKI-DOO | MXZ 600 Trail L/C 121" | 2001-2003 |
| SKI-DOO | MXZ 600 X L/C 121" | 2001-2002 |
| SKI-DOO | MXZ 600 X R L/C | 2002 |
| SKI-DOO | MXZ 600 X e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 600 X-RS Iron Dog e-tec REV-XS RS R 129" | 2017 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XS RS ES/R 129" | 2016 |
| SKI-DOO | MXZ 700 X L/C 121" | 2002 |
| SKI-DOO | MXZ 800 Blizzard e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 800 TNT e-tec REV-XS ES/R 120" | 2016 |
| SKI-DOO | MXZ 800 X e-tec REV-XS ES/R 129" | 2016 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS ES/R 129" | 2017 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS R 129" | 2016 |
| SKI-DOO | Renegade 550 Sport REV-XP R F/C 137" | 2010-2014 |
| SKI-DOO | Renegade 600 Adrenaline e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 600 Enduro e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 Sport carb REV-XP ES/R 137" | 2016-2020 |
| SKI-DOO | Renegade 600 Sport carb REV-XP R 137" | 2015 |
| SKI-DOO | Renegade 600 X e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 800 Adrenaline e-tec REV-XS ES/R 137" | 2016 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Backcountry e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Enduro e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 800 X e-tec REV-XS ES/R 137" | 2016 |
| SKI-DOO | Renegade 800 X-RS e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Skandic 500 SWT ES/R F/C 156" | 2003 |
| SKI-DOO | Skandic 500 WT | 2015 |
| SKI-DOO | Skandic 500 WT ES/R F/C 156" | 2003 |
| SKI-DOO | Skandic 550 REV-XU F/C | 2018 |
| SKI-DOO | Skandic 550 SUV ES/R F/C 156" | 2004-2010 |
| SKI-DOO | Skandic 550 SWT 2-Stroke | 2017 |
| SKI-DOO | Skandic 550 SWT ES/R F/C 156" | 2004-2008 |
| SKI-DOO | Skandic 550 SWT REV-XU ES/R 154" | 2019 |
| SKI-DOO | Skandic 550 SWT REV-XU F/C | 2018 |
| SKI-DOO | Skandic 550 SWT REV-XU F/C EURO | 2014-2015 |
| SKI-DOO | Skandic 550 Sport R F/C 136" | 2004 |
| SKI-DOO | Skandic 550 Tundra LT REV-XU ES/R F/C 154" | 2010-2013 |
| SKI-DOO | Skandic 550 Tundra LT RF ES/R F/C 154" | 2008-2009 |
| SKI-DOO | Skandic 550 Tundra REV-XU ES F/C 137" | 2010-2012 |
| SKI-DOO | Skandic 550 Tundra Sport REV-XU ES/R F/C 137" | 2010-2013 |
| SKI-DOO | Skandic 550 WT ES/R F/C 154" | 2012 |
| SKI-DOO | Skandic 550 WT ES/R F/C 156" | 2004-2011 |
| SKI-DOO | Skandic 550 WT REV-XU ES/R 154" | 2018-2019 |
| SKI-DOO | Skandic 550 WT REV-XU ES/R F/C 154" | 2013-2017, 2020 |
| SKI-DOO | Skandic 600 SUV ES/R 156" | 2003 |
| SKI-DOO | Skandic 600 SUV ES/R L/C 156" | 2004-2007 |
| SKI-DOO | Skandic 600 SUV Euro | 2009 |
| SKI-DOO | Skandic 600 SWT e-tec REV-XU ES/R 156" | 2016-2017 |
| SKI-DOO | Skandic 600 WT ES/R L/C 156" | 2001-2010 |
| SKI-DOO | Skandic 600 WT e-tec REV-XU ES/R 154" | 2016-2017 |
| SKI-DOO | Summit 500SS Everest Carb REV-XP R 146" | 2009 |
| SKI-DOO | Summit 550 R F/C 136" | 2003-2004 |
| SKI-DOO | Summit 550 REV R F/C 136" | 2005-2009 |
| SKI-DOO | Summit 600 CARB Sport p-tek REV-XP R 146" | 2010-2019 |
| SKI-DOO | Summit 600 L/C 136" | 1999-2000 |
| SKI-DOO | Summit 600 L/C 144" | 2001 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 600 Sport L/C 144" | 2002 |
| SKI-DOO | Summit 600 Sport R L/C 144" | 2002 |
| SKI-DOO | Summit 600 Sport carb REV-XP R 146" | 2020 |
| SKI-DOO | Summit 800 Burton e-tec 2-up REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 163" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 174" | 2016 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 163" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Summit 800 Sport carb REV-XP R 154" | 2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 163" | 2016 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Tundra 550 LT REV-XU ES/R F/C 154" | 2014-2020 |
| SKI-DOO | Tundra 550 LT XP F/C Euro | 2014 |
| SKI-DOO | Tundra 550 Sport REV-XU ES/R F/C 137" | 2014-2020 |
| SKI-DOO | Tundra 550 Sport XP F/C Euro | 2014 |
| SKI-DOO | Tundra 550 WT F/C | 2018 |
| SKI-DOO | Tundra 550 WT RER-XU F/C EURO | 2014-2015 |
| SKI-DOO | Tundra WT 2-Stroke Euro | 2017 |
