Kimpex | SKU:
982225
Sold out
8% off

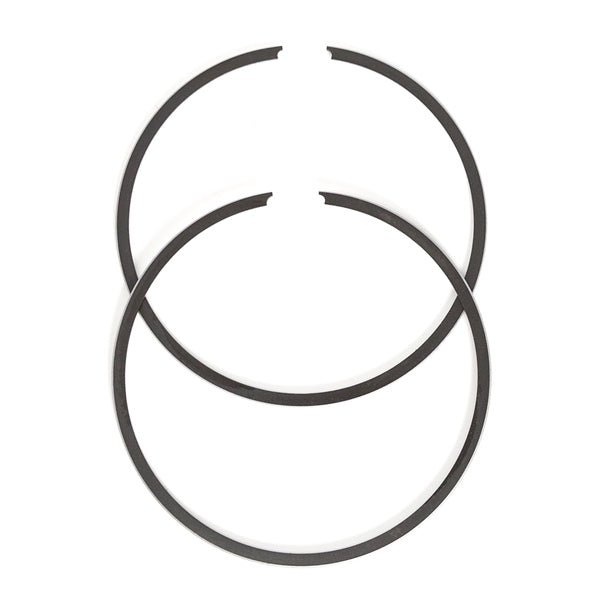

Kimpex Piston Replacement Ring Set
Sale price
$23.99
Regular price
$25.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: 982225
- Bore - Oversize: Standard
- Bore - Standard: 71.87 mm
- Compatible Brand: Fits Ski-doo
- Cylinders: 2
- Displacement: 600 cc
- Displacement: 400 cc
- Number: R09-663
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| SKI-DOO | Expedition 600 LE e-tec REV-XU ES/R 154" | 2011-2019 |
| SKI-DOO | Expedition 600 SDI REV-XU ES/R 156" | 2010 |
| SKI-DOO | Expedition 600 SE SDI REV-XU ES/R 156" | 2010 |
| SKI-DOO | Expedition 600 SE e-tec REV-XU ES/R 154" | 2011-2019 |
| SKI-DOO | Expedition 600 TUV SDI ES/R L/C 156" | 2005-2008 |
| SKI-DOO | Expedition 600 TUV SDI REV-XU ES/R 156" | 2009 |
| SKI-DOO | Expedition 600 TUV SDI YETI ES/R L/C 156" | 2009 |
| SKI-DOO | Expedition 800 Xtreme e-tec REV-XU ES/R 154" | 2016-2017 |
| SKI-DOO | GSX 600 LE SDI REV ES/R L/C 121" | 2007 |
| SKI-DOO | GSX 600 LE SDI REV-XP ES/R L/C 120" | 2008 |
| SKI-DOO | GSX 600 LE Touring SDI REV-XP ES/R L/C 120" | 2008 |
| SKI-DOO | GSX 600 LE e-tec REV-XP ES/R 120" | 2009-2013 |
| SKI-DOO | GSX 600 LE e-tec REV-XS ES/R 120" | 2014-2015 |
| SKI-DOO | GSX 600 SE e-tec REV-XR ES/R 137" | 2012-2015 |
| SKI-DOO | GSX 600 Sport 1+1 REV ES/R L/C 121" | 2004 |
| SKI-DOO | GSX 600 Sport REV ES/R L/C 121" | 2004-2005 |
| SKI-DOO | GSX 600 Sport SDI 1+1 REV ES/R L/C 121" | 2004 |
| SKI-DOO | GSX 600 Sport SDI REV ES/R L/C 121" | 2007 |
| SKI-DOO | GSX LE 600 HO SDI | 2004-2006 |
| SKI-DOO | GSX LE 600 HO SDI 1+1 | 2004 |
| SKI-DOO | GSX Sport 600 HO SDI | 2004-2006 |
| SKI-DOO | GTX 600 LE SDI REV ES/R L/C 136" | 2005-2008 |
| SKI-DOO | GTX 600 LE e-tec REV-XR ES/R L/C 137" | 2009 |
| SKI-DOO | GTX 600 Sport REV ES/R L/C 136" | 2005 |
| SKI-DOO | GTX 600 Sport SDI REV ES/R L/C 136" | 2005-2008 |
| SKI-DOO | Grand Touring 600 LE e-tec REV-XR ES/R 137" | 2010-2015 |
| SKI-DOO | Grand Touring 600 LE e-tec REV-XS ES/R 137" | 2016-2018 |
| SKI-DOO | Legend 600 GT SE SDI ES/R L/C 136" | 2004 |
| SKI-DOO | Legend 600 GT Sport SDI ES/R L/C 136" | 2004 |
| SKI-DOO | Legend 600 SE SDI ES/R L/C 121" | 2004 |
| SKI-DOO | Legend 600 Sport SDI ES/R L/C 121" | 2004 |
| SKI-DOO | MX Z Renegade X 600 HO SDI Track 1,75 | 2005-2006 |
| SKI-DOO | MX Z Renegade X 600 HO Track 1,75 | 2004 |
| SKI-DOO | MX Z Renegade 600 HO Track 1,75 | 2004 |
| SKI-DOO | MX Z Renegade X 600 HO SDI Track 1,75 | 2004 |
| SKI-DOO | MXZ 600 50th Anniversary e-tec REV-XP R 120" | 2009 |
| SKI-DOO | MXZ 600 Adrenaline R L/C 121" | 2003 |
| SKI-DOO | MXZ 600 Adrenaline REV R 121" | 2007 |
| SKI-DOO | MXZ 600 Adrenaline REV R L/C 121" | 2004-2006 |
| SKI-DOO | MXZ 600 Adrenaline SDI REV R 121" | 2007 |
| SKI-DOO | MXZ 600 Adrenaline SDI REV R L/C 121" | 2004-2006 |
| SKI-DOO | MXZ 600 Adrenaline SDI REV-XP R 120" | 2008 |
| SKI-DOO | MXZ 600 Adrenaline e-tec REV-XP R 120" | 2010 |
| SKI-DOO | MXZ 600 Adrenaline e-tec REV-XP R L/C 120" | 2009 |
| SKI-DOO | MXZ 600 Blizzard SDI REV R L/C 121" | 2007 |
| SKI-DOO | MXZ 600 Blizzard e-tec REV-XS ES/R 129" | 2016-2018 |
| SKI-DOO | MXZ 600 Iron Dog e-tec REV-XS RS R 128" | 2015 |
| SKI-DOO | MXZ 600 James Bond Edition L/C 121" | 2003 |
| SKI-DOO | MXZ 600 RS (US) | 2008 |
| SKI-DOO | MXZ 600 RS Carb REV-XP R 120" | 2009-2011 |
| SKI-DOO | MXZ 600 Renegade R L/C 136" | 2003 |
| SKI-DOO | MXZ 600 Renegade REV R L/C 136" | 2004-2005 |
| SKI-DOO | MXZ 600 Renegade SDI REV R L/C 136" | 2005-2007 |
| SKI-DOO | MXZ 600 Renegade SDI REV-XP R 137" | 2008 |
| SKI-DOO | MXZ 600 Renegade e-tec REV-XP R 137" | 2009 |
| SKI-DOO | MXZ 600 Sport Carb REV-XP R 120" | 2016-2017 |
| SKI-DOO | MXZ 600 Sport REV R L/C 121" | 2003 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XP R 120" | 2009, 2011-2013 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 120" | 2014-2016 |
| SKI-DOO | MXZ 600 TNT e-tec REV-XS ES/R 129" | 2017-2018 |
| SKI-DOO | MXZ 600 Trail L/C 121" | 2003 |
| SKI-DOO | MXZ 600 Trail REV L/C 121" | 2004 |
| SKI-DOO | MXZ 600 Trail REV R L/C 121" | 2004-2005 |
| SKI-DOO | MXZ 600 X REV R L/C 121" | 2003-2005 |
| SKI-DOO | MXZ 600 X Renegade REV R L/C 136" | 2004 |
| SKI-DOO | MXZ 600 X Renegade SDI REV R L/C 136" | 2004-2007 |
| SKI-DOO | MXZ 600 X Renegade SDI REV-XP R 137" | 2008 |
| SKI-DOO | MXZ 600 X Renegade e-tec REV-XP R 137" | 2009 |
| SKI-DOO | MXZ 600 X SDI REV R L/C 121" | 2004-2007 |
| SKI-DOO | MXZ 600 X SDI REV-XP R 120" | 2008 |
| SKI-DOO | MXZ 600 X e-tec REV-XP ES/R 120" | 2012 |
| SKI-DOO | MXZ 600 X e-tec REV-XP R 120" | 2009-2011 |
| SKI-DOO | MXZ 600 X e-tec REV-XS ES/R 120" | 2013-2015 |
| SKI-DOO | MXZ 600 X e-tec REV-XS ES/R 129" | 2016-2018 |
| SKI-DOO | MXZ 600 X-RS Iron Dog e-tec REV-XS RS R 129" | 2017-2018 |
| SKI-DOO | MXZ 600 X-RS Racing Carb REV-XP R | 2013 |
| SKI-DOO | MXZ 600 X-RS Racing Carb REV-XP R 120" | 2012 |
| SKI-DOO | MXZ 600 X-RS SDI REV R L/C 121" | 2007 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XP R 120" | 2010-2012 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XRS ES/R 120" | 2013 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XS RS ES/R 120" | 2014-2015 |
| SKI-DOO | MXZ 600 X-RS e-tec REV-XS RS ES/R 129" | 2016 |
| SKI-DOO | MXZ 600HOE X-RS Euro | 2015 |
| SKI-DOO | MXZ 600RS | 2016-2017 |
| SKI-DOO | MXZ 600RS X Euro | 2014 |
| SKI-DOO | MXZ 800 Blizzard e-tec REV-XS ES/R 129" | 2016-2017 |
| SKI-DOO | MXZ 800 TNT e-tec REV-XS ES/R 120" | 2016 |
| SKI-DOO | MXZ 800 X e-tec REV-XS ES/R 129" | 2016 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS ES/R 129" | 2017 |
| SKI-DOO | MXZ 800 X-RS e-tec REV-XS RS R 129" | 2016 |
| SKI-DOO | Renegade 600 Adrenaline e-tec REV-XP R 137" | 2010-2013 |
| SKI-DOO | Renegade 600 Adrenaline e-tec REV-XS ES/R 137" | 2014-2018 |
| SKI-DOO | Renegade 600 Backcountry X e-tec REV-XP ES/R 137" | 2012 |
| SKI-DOO | Renegade 600 Backcountry X e-tec REV-XP R 137" | 2011 |
| SKI-DOO | Renegade 600 Backcountry X e-tec REV-XS ES/R 137" | 2013-2014 |
| SKI-DOO | Renegade 600 Backcountry X e-tec REV-XS ES/R EURO | 2015 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XM R 146" | 2016-2018 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XP R 137" | 2010-2012 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XS ES/R 137" | 2014-2015 |
| SKI-DOO | Renegade 600 Backcountry e-tec REV-XS R 137" | 2013 |
| SKI-DOO | Renegade 600 Enduro e-tec REV-XS ES/R 137" | 2016-2018 |
| SKI-DOO | Renegade 600 Sport carb REV-XP ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 600 X e-tec REV-XP ES/R 137" | 2012 |
| SKI-DOO | Renegade 600 X e-tec REV-XP R 137" | 2010-2011 |
| SKI-DOO | Renegade 600 X e-tec REV-XS ES/R 137" | 2013-2018 |
| SKI-DOO | Renegade 800 Adrenaline e-tec REV-XS ES/R 137" | 2016 |
| SKI-DOO | Renegade 800 Backcountry X e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Backcountry e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Renegade 800 Enduro e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Renegade 800 X e-tec REV-XS ES/R 137" | 2016 |
| SKI-DOO | Renegade 800 X-RS e-tec REV-XS ES/R 137" | 2016-2017 |
| SKI-DOO | Skandic 550 WT REV-XU ES/R F/C 154" | 2016-2017 |
| SKI-DOO | Skandic 600 SUV SDI ES/R L/C 156" | 2008 |
| SKI-DOO | Skandic 600 SWT e-tec REV-XU ES/R 156" | 2012-2020 |
| SKI-DOO | Skandic 600 Tundra Xtreme e-tec REV-XU ES/R 154" | 2011-2013 |
| SKI-DOO | Skandic 600 WT e-tec REV-XU ES/R 154" | 2011-2020 |
| SKI-DOO | Summit 600 Adrenaline R L/C 144" | 2003 |
| SKI-DOO | Summit 600 Adrenaline REV R L/C 144" | 2004-2005 |
| SKI-DOO | Summit 600 Adrenaline SDI REV R L/C 144" | 2006-2008 |
| SKI-DOO | Summit 600 CARB Sport p-tek REV-XP R 146" | 2016-2017 |
| SKI-DOO | Summit 600 Everest e-tec REV-XP R 146" | 2009-2011 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 146" | 2014-2018 |
| SKI-DOO | Summit 600 SP e-tec REV-XM R 154" | 2014-2018 |
| SKI-DOO | Summit 600 SP e-tec REV-XP R 146" | 2012-2013 |
| SKI-DOO | Summit 600 SP e-tec REV-XP R 154" | 2012-2013 |
| SKI-DOO | Summit 600 X REV R L/C 144" | 2004 |
| SKI-DOO | Summit 600 X e-tec REV-XP R L/C 154" | 2009-2011 |
| SKI-DOO | Summit 800 Burton e-tec 2-up REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 163" | 2016 |
| SKI-DOO | Summit 800 SP T-3 e-tec REV-XM R 174" | 2016 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 146" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 154" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 163" | 2016-2017 |
| SKI-DOO | Summit 800 SP e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Summit 800 Sport carb REV-XP R 154" | 2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 154" | 2016 |
| SKI-DOO | Summit 800 X T-3 e-tec REV-XM R 163" | 2016 |
| SKI-DOO | Summit 800 X e-tec REV-XM R 174" | 2017 |
| SKI-DOO | Tundra Xtreme 600 e-tec REV-XU ES/R 154" | 2014-2020 |
| SKI-DOO | Tundra Xtreme 600HOE XP Euro | 2014 |
