Kimpex | SKU:
R09-656
Sold out
9% off

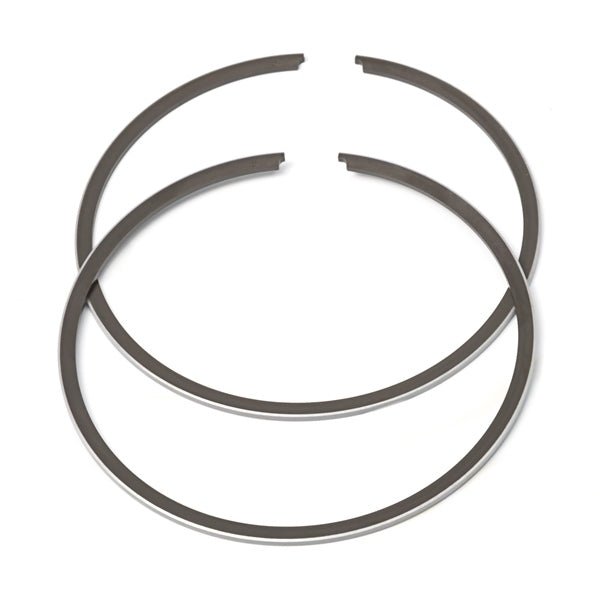

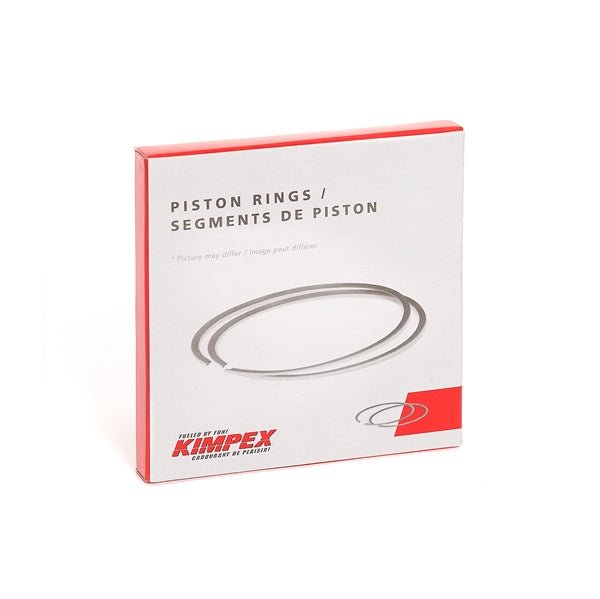

Kimpex Piston Replacement Ring Set
Sale price
$30.99
Regular price
$33.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: R09-656
- Bore - Oversize: Standard
- Bore - Standard: 73.8 mm
- Compatible Brand: Fits Arctic cat
- Cylinders: 2
- Displacement: 565 cc
- Engine type: 2-Strokes
- Number: R09-656
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| ARCTIC CAT (TEXTRON) | Bearcat 2000 LT ES 151" | 2015-2018 |
| ARCTIC CAT (TEXTRON) | Bearcat 2000 XT ES 154" | 2015-2017, 2020 |
| ARCTIC CAT (TEXTRON) | Bearcat 2000 XTE 154" | 2015-2016 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 ES 151" | 2011-2014 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 LTD | 2011 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 Long Track ES F/C 151" | 2010 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 Long Track ES/R F/C 156" | 2006-2009 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 Long Track R F/C 156" | 2004-2005 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 XT ES 154" | 2012-2014 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 XT ES 156" | 2010-2011 |
| ARCTIC CAT (TEXTRON) | Bearcat 570 XT ES/R 156" | 2009 |
| ARCTIC CAT (TEXTRON) | Bearcat 7000 XT 154" | 2018 |
| ARCTIC CAT (TEXTRON) | Crossfire 600 136" | 2007-2008 |
| ARCTIC CAT (TEXTRON) | Crossfire 600 141" | 2009-2011 |
| ARCTIC CAT (TEXTRON) | Crossfire 600 EFI 136" | 2006 |
| ARCTIC CAT (TEXTRON) | Crossfire 600 sno pro EFI 136" | 2006 |
| ARCTIC CAT (TEXTRON) | F570 ES 128" | 2008-2014 |
| ARCTIC CAT (TEXTRON) | F6 128" | 2007-2008 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 Carb 128" | 2004 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 EFI 128" | 2004-2006 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 EXT EFI 144" | 2004-2005 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 R EFI 128" | 2005-2006 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 Sno Pro Carb 128" | 2004 |
| ARCTIC CAT (TEXTRON) | F6 Firecat 600 Sno Pro EFI 128" | 2004-2006 |
| ARCTIC CAT (TEXTRON) | F6 LXR ES 128" | 2007-2008 |
| ARCTIC CAT (TEXTRON) | F6 Sno Pro 128" | 2007-2011 |
| ARCTIC CAT (TEXTRON) | Lynx 2000 ES 128" | 2015, 2020 |
| ARCTIC CAT (TEXTRON) | Lynx 2000 ES 129" | 2016-2019 |
| ARCTIC CAT (TEXTRON) | Lynx 2000 LT ES 144" | 2015-2020 |
| ARCTIC CAT (TEXTRON) | M6 141" | 2007 |
| ARCTIC CAT (TEXTRON) | M6 153" | 2007-2011 |
| ARCTIC CAT (TEXTRON) | M6 EFI 141" | 2005-2006 |
| ARCTIC CAT (TEXTRON) | M6 EFI 153" | 2005-2006 |
| ARCTIC CAT (TEXTRON) | Mountain Cat 570 F/C 136" | 2002-2004 |
| ARCTIC CAT (TEXTRON) | Panther 550 ES/R 136" | 2002-2006 |
| ARCTIC CAT (TEXTRON) | Panther 570 ES F/C 136" | 2007 |
| ARCTIC CAT (TEXTRON) | Panther 570 R F/C 136" | 2002 |
| ARCTIC CAT (TEXTRON) | Sabercat 600 Carb 128" | 2004 |
| ARCTIC CAT (TEXTRON) | Sabercat 600 EFI 128" | 2004-2005 |
| ARCTIC CAT (TEXTRON) | Sabercat 600 EXT ES/R EFI 144" | 2004-2005 |
| ARCTIC CAT (TEXTRON) | Sabercat 600 LX ES/R Carb 128" | 2004 |
| ARCTIC CAT (TEXTRON) | Sabercat 600 LX ES/R EFI 128" | 2004-2006 |
| ARCTIC CAT (TEXTRON) | T570 ES 144" | 2008-2014 |
| ARCTIC CAT (TEXTRON) | Z 570 ES/R F/C 121" | 2002-2003 |
| ARCTIC CAT (TEXTRON) | Z 570 F/C 121" | 2002-2007 |
| ARCTIC CAT (TEXTRON) | Z 570 LX ES F/C 121" | 2007 |
| ARCTIC CAT (TEXTRON) | Z 570 LX ES/R F/C 121" | 2004-2006 |
| ARCTIC CAT (TEXTRON) | Z 570 SS F/C 121" | 2002 |
