Kimpex  |  SKU: SF-010-003488

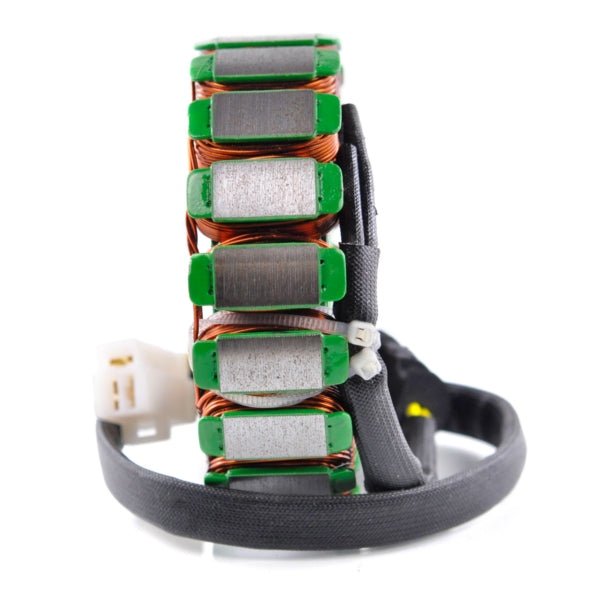

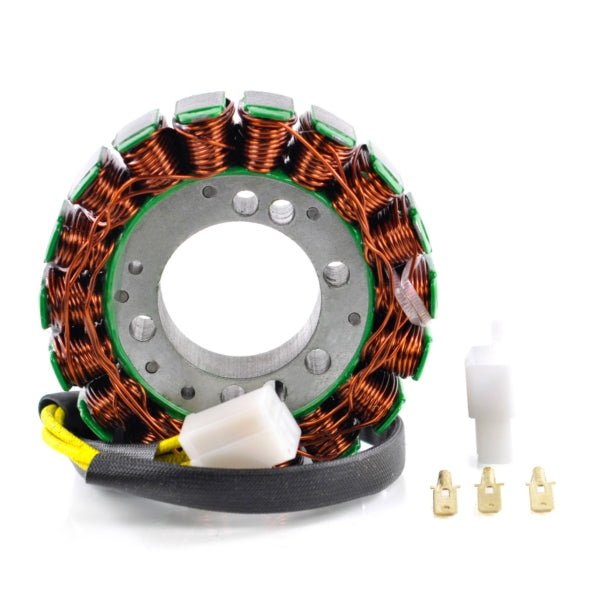

Kimpex Stator

$175.94 $206.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

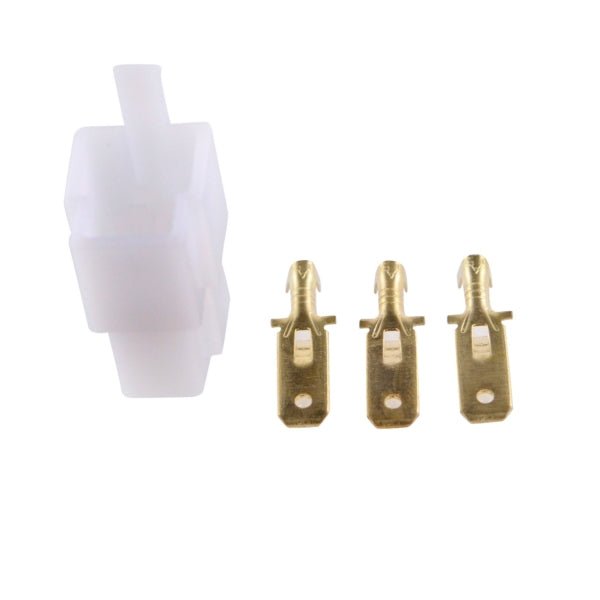

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-003488
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 105
  • Internal Diameter (mm): 42
  • Notes: The opposite connector is include (main harness side)
  • Notes: Includes: Connectors
  • Notes: Includes: Rubber grommet
  • Number: 225478
  • Number of connectors: 1
  • Number of terminals: 3
  • Number of wires: 3
  • Original Product Type: Stators
  • Thickness (mm): 22
MakeModelYears
YAMAHAYZF-R1 10001998-2001
YAMAHAYZF-R1 1000 Champ. Edition2001
