Kimpex  |  SKU: SF-010-003239

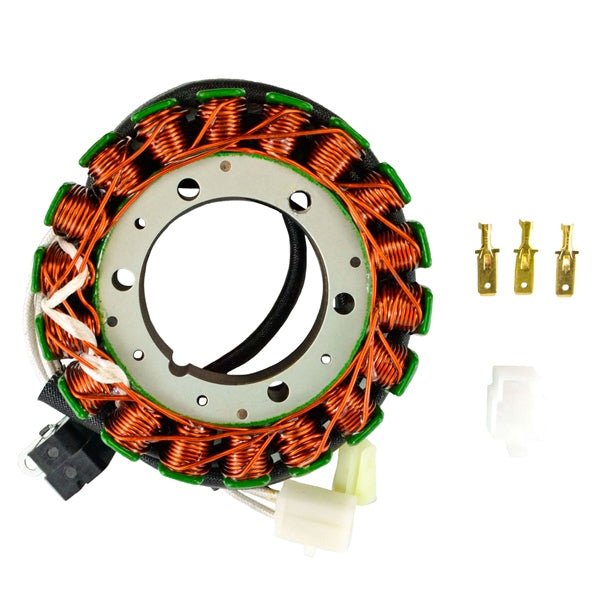

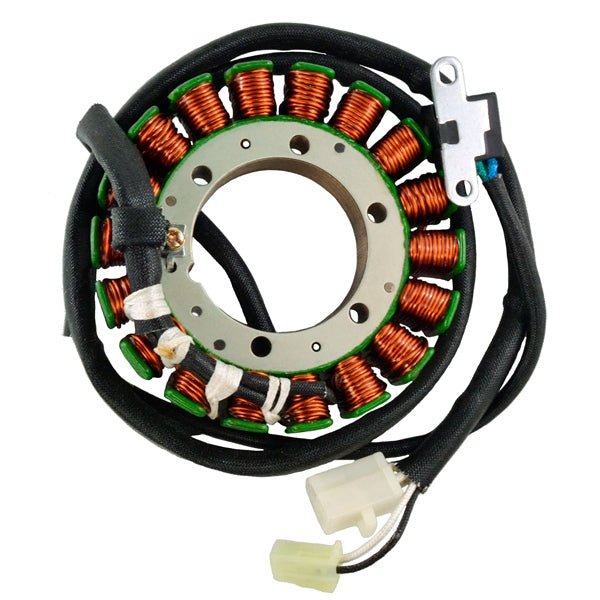

Kimpex Stator

$175.94 $206.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

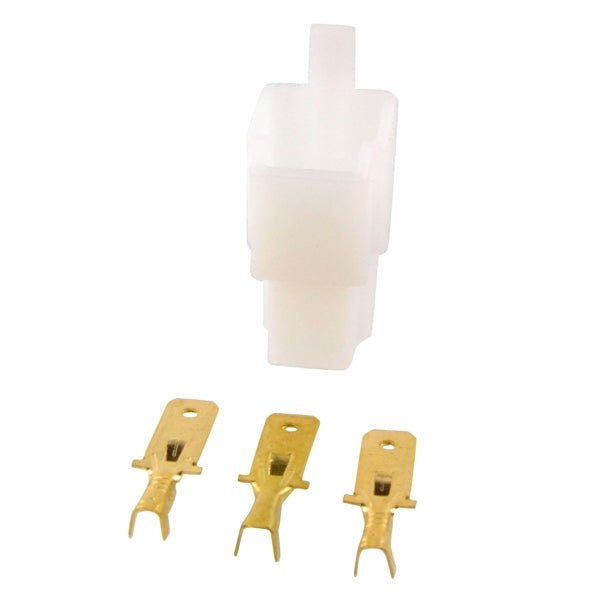

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-003239
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 115
  • Internal Diameter (mm): 54
  • Notes: Includes: Rubber grommet
  • Notes: Includes: Connectors

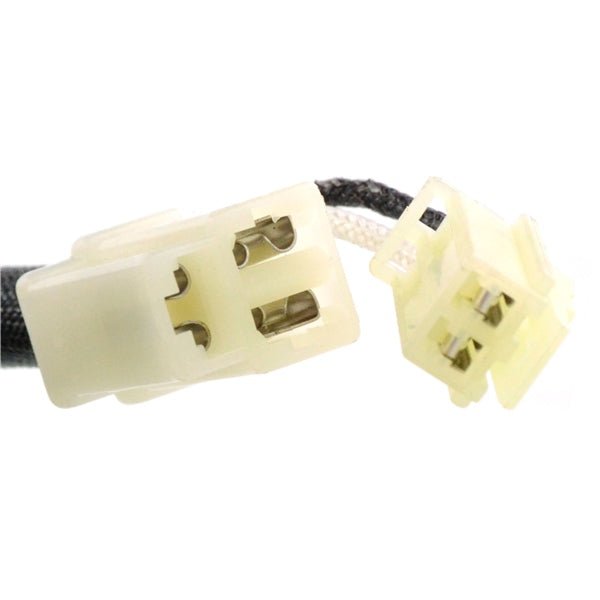

  • Notes: The opposite connector is include (main harness side)
  • Notes: Includes: Pick up pulsar
  • Number: 225547
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 18
MakeModelYears
YAMAHAV Star Classic 6502004-2010
YAMAHAV Star Classic 650 Canadian Edition2008
YAMAHAV Star Custom 6502004-2011, 2013-2016
YAMAHAV Star Silverado 6502005-2010
YAMAHAV Star Silverado 650 Canadian Edition2008
