Kimpex  |  SKU: SF-010-004659

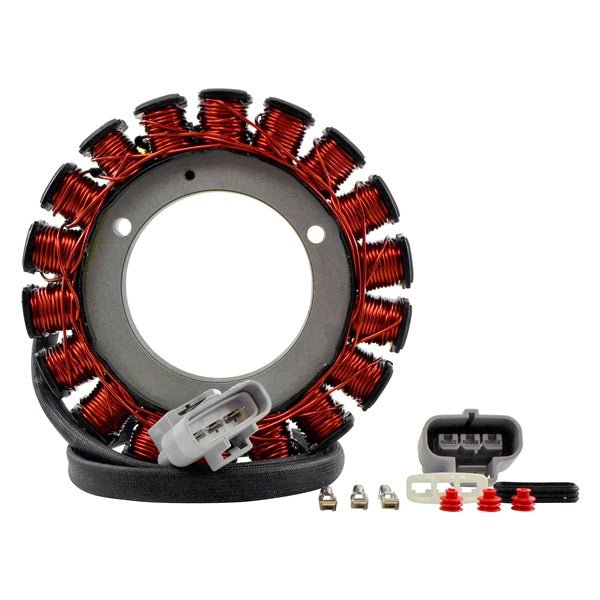

Kimpex Stator

$213.99 $236.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-004659
  • Compatible Brand: Fits Kawasaki
  • External Diameter (mm): 145
  • Internal Diameter (mm): 70
  • Notes: 18-Poles Stator
  • Number: 225680
  • Number of connectors: 1
  • Number of terminals: 3
  • Number of wires: 3
  • Original Product Type: Stators
  • Thickness (mm): 12
MakeModelYears
KAWASAKIMule 4000 2x42009-2012, 2014-2023
KAWASAKIMule 4000 Trans 2x42018-2021
KAWASAKIMule 4010 4x42009-2023
KAWASAKIMule 4010 SE 4x42016-2018
KAWASAKIMule 4010 Trans 4x42009-2023
KAWASAKIMule 4010 Trans SE 4x42016-2018
