Kimpex  |  SKU: SF-900-006564

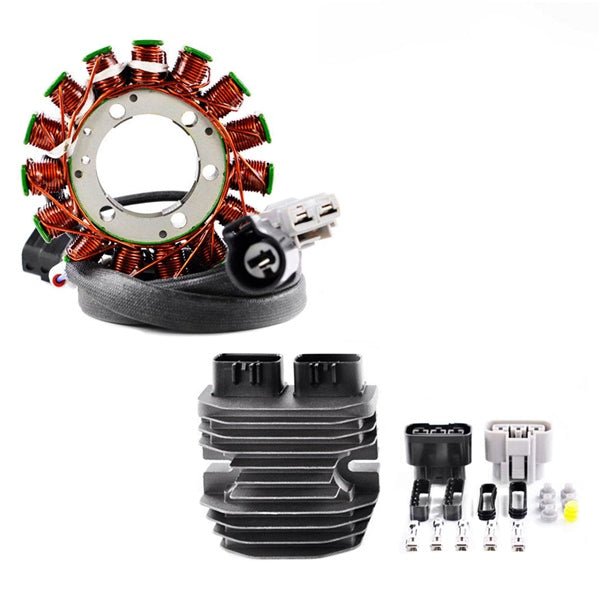

Kimpex Generator Stator & Volatage Regulator Kit

$413.99 $458.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • All products shipped are tested
  • One year limited warranty

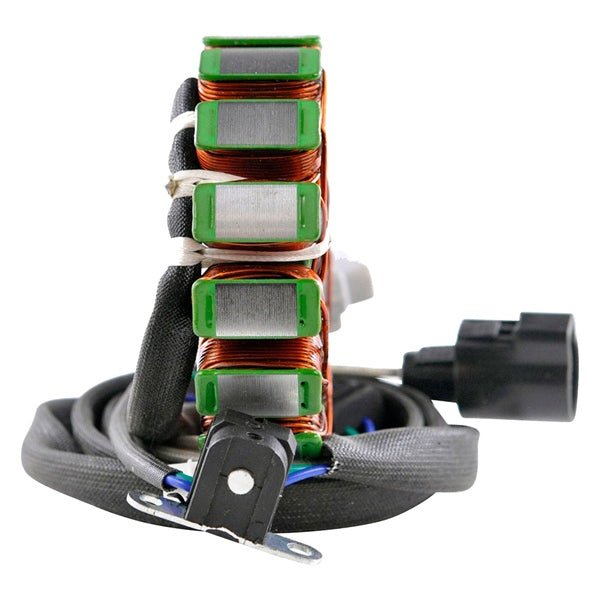

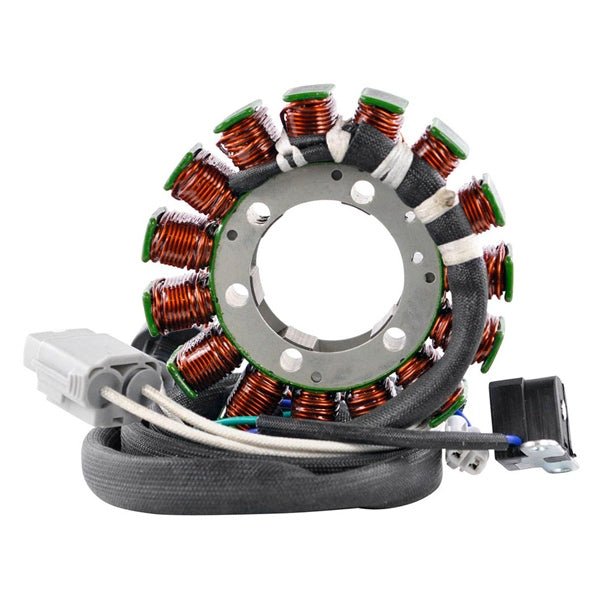

Generator Stator
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Voltage regulator
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.

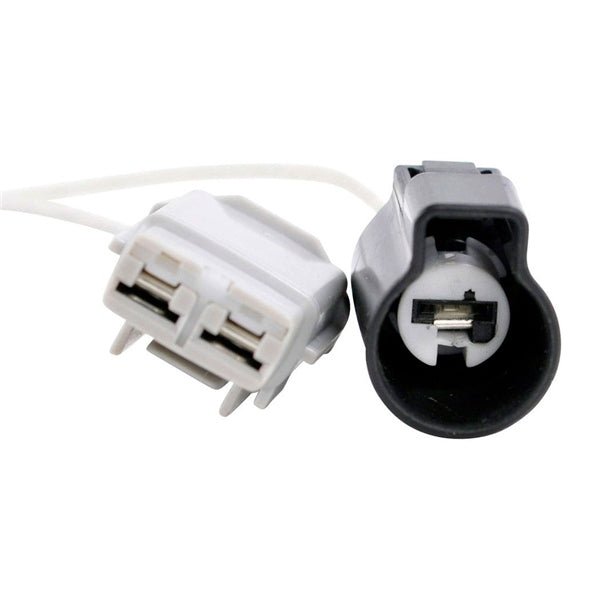

  • We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
  • SKU: SF-900-006564
  • Compatible Brand: Fits Kawasaki
  • External Diameter (mm): 105
  • Internal Diameter (mm): 42
  • Number: 345076
  • Number of connectors: 3
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 20
MakeModelYears
KAWASAKIBrute Force 750 4x4i2012-2021
KAWASAKIBrute Force 750 EPS 4x4i2012-2023
KAWASAKIBrute Force 750 SE EPS 4x4i2012-2019
KAWASAKIKVF750N 4x4 Brute Force EPS2024
KAWASAKITeryx 800 EPS2014-2023
KAWASAKITeryx 800 LE EPS2014-2021
KAWASAKITeryx4 7502012-2013
KAWASAKITeryx4 750 EPS2012-2013
KAWASAKITeryx4 750 LE EPS2012-2013
KAWASAKITeryx4 800 EPS2014-2023
KAWASAKITeryx4 800 LE EPS2014-2021
