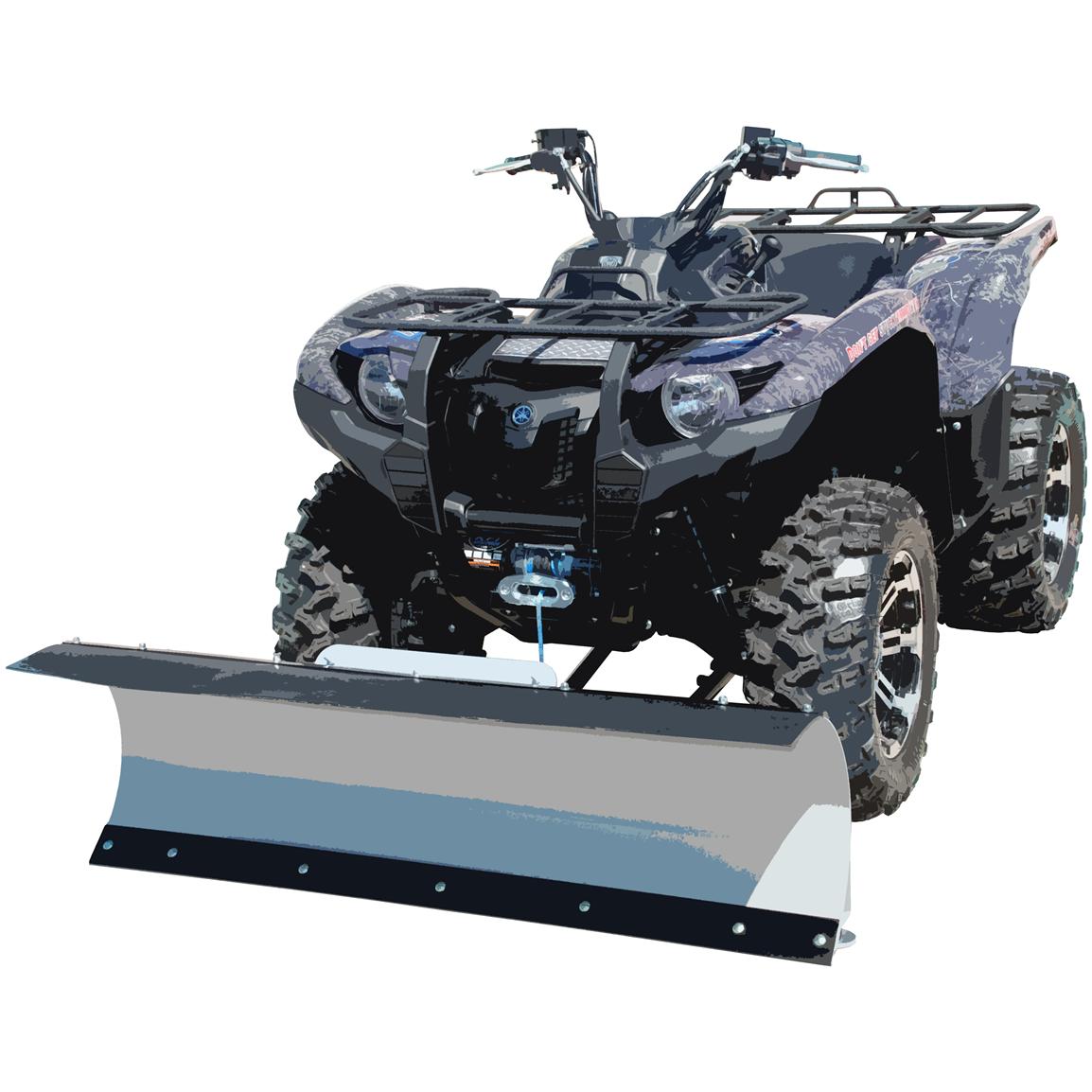

KFI ATV Complete Plow Package

Looking for UTV Plow Systems? Click here to see UTV plow packages.

Plow package includes: blade, push tube, and model-specific mount.

Heads-up: Some ATV models require additional components or different mount systems, which may affect price. If that applies to your machine, we’ll contact you promptly.

Please enter your year, make, and model at checkout so we can send the correct mount. Questions? Email info@drivenpowersports.ca.

ATV Steel Blade Specifications

• 100% Made in USA
• Pushes snow straight ahead or angles left/right up to 25°
• Added gussets for wider widths
• 66" & 72" blades include a 7" high 2-ply top rubber flap
• Blade face: 16" tall (approx. 21" with snow flap)
• Fully adjustable blade skids with bolt-on brackets
• Heavy-duty 3" diameter Grade-50 steel skid plates
• Blade constructed from 11-gauge steel
• 3/16" Grade-50 ribbing for a strong bolt-up to the swivel tube
• Bead-blasted and powder-coated Metallic Silver for durability
• Two-sided 3/16" × 3.00" Grade-50 steel wear bar
• Wear bar attached with heavy-duty Grade-8 bolts
• 2-Year KFI Warranty

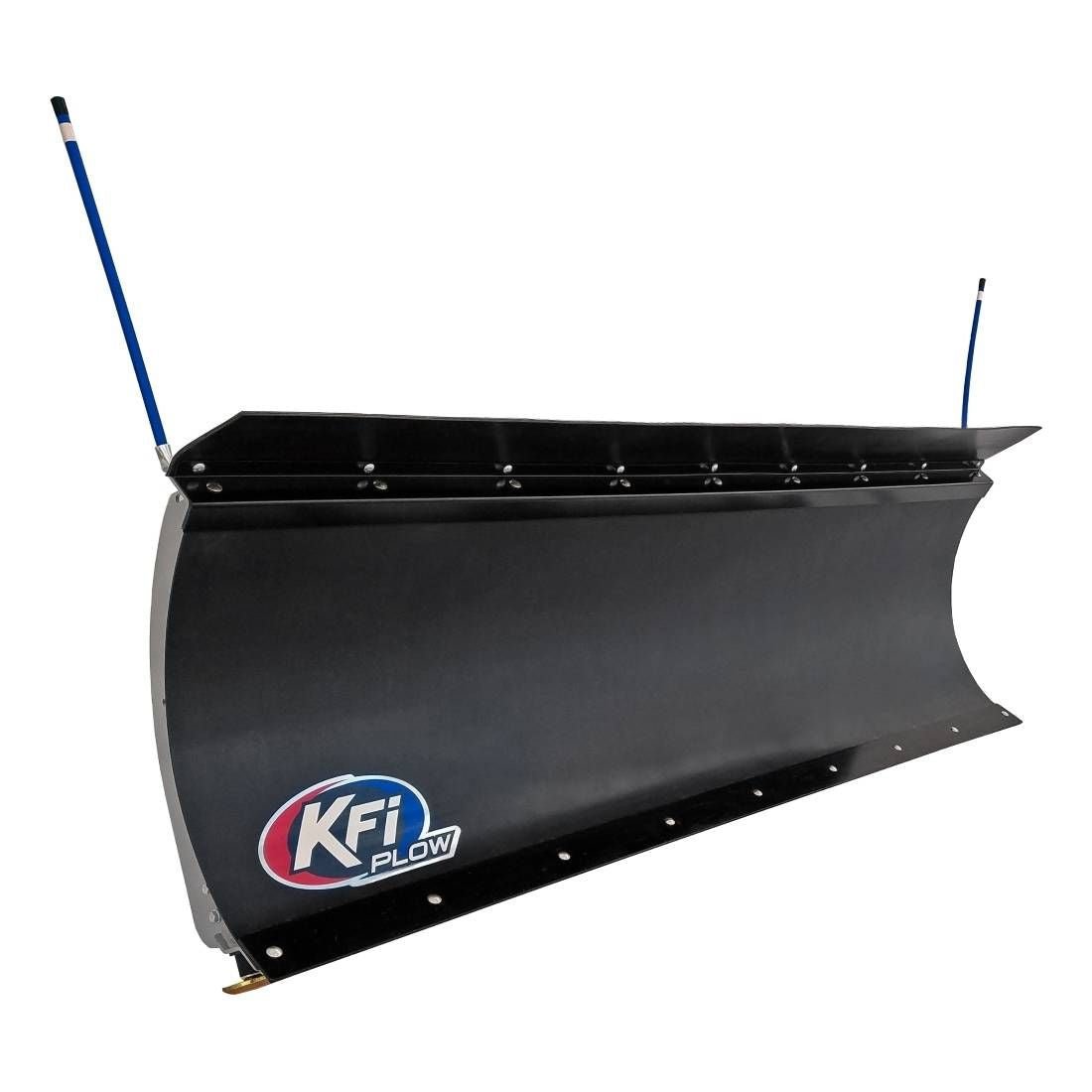

ATV Poly Blade Specifications

• Includes a 7" high 2-ply top rubber flap
• 100% Made in USA
• Dual-curvature face for superior snow moving
• Blade face: 21" tall (approx. 27" with snow flap)
• Fully adjustable blade skids with bolt-on brackets
• Heavy-duty 3" diameter Grade-50 steel skid plates
• Flexible heavy-duty black poly face
• 3/16" Grade-50 steel rib and frame construction
• Bead-blasted and powder-coated Black for durability
• Two-sided 3/16" × 3.00" Grade-50 steel wear bar
• Wear bar attached with heavy-duty Grade-8 bolts
• Complete installation instructions included
• Works with KFI ATV & UTV tubes
• Includes plow markers
• 2-Year KFI Warranty

ATV Push Tube Specifications

• Mid-mount design with 40–50% more lift height than typical mid-mount systems
• 100% Made in USA
• Heavy-duty 1-1/2" 11-gauge steel tubing
• Heavy-duty 1/4" thick, 1-1/2" diameter Grade-50 pivot bushings
• 6" diameter zinc-plated rotator bushing
• Easy-pull pin blade angle adjustment
• Multi-position plow lift bracket
• Six 5-degree blade pitch adjustments
• Five blade angle positions (up to 25°)
• Bead-blasted and powder-coated Black for durability
• Complete installation instructions and all mounting hardware included
