HI-TORQUE ROLLERS  |  SKU: S-SD-QRS-010

Hi-Torque QRS Secondary Clutch Roller Kit for Ski-Doo & Lynx 2008+ (S-SD-QRS-010)

Regular price $89.99


  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

The Hi-Torque Rollers "Classic" kit (#S-SD-QRS-010) replaces the rollers in the Ski-Doo QRS secondary (driven) clutch. It fits 2008 and newer Ski-Doo and Lynx sleds with the 2-roller QRS secondary, including the MXZ, Renegade, Summit and Backcountry, on clutches with e-clip or spring pin studs.

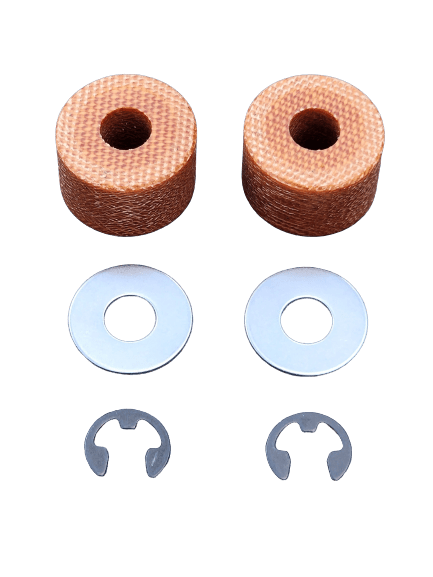

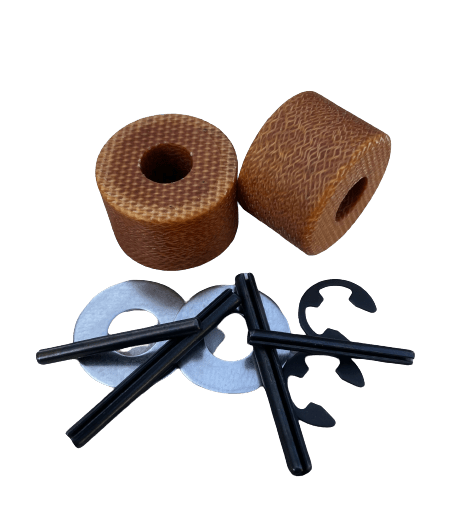

What is in the kit

  • 2 thermoset composite rollers, about 0.870" O.D. x 0.600" wide (OEM size)
  • 2 stainless steel thrust washers
  • 2 e-clips
  • 2 small and 2 large diameter spring pins

Fitment

  • Ski-Doo and Lynx snowmobiles with the 2-roller QRS secondary clutch, 2008 and newer.
  • Replaces BRP OEM part numbers 417127016, 417128056 and 417127943.
  • Not for Super Wide Track models with the QRS secondary and the high/low range chain case. Hi-Torque makes a separate roller for those.
  • Made for OEM-style helixes that contact the full rolling face of the roller.
  • Check that your sled uses the QRS secondary clutch before you order.

Installation tips from Hi-Torque

  • Follow the roller replacement steps in your sled's service manual.
  • Remove the e-clip (2008-2011) or spring pin (2012 and newer) before removing the stud.
  • Polish any roughness from the stud's rolling surface. If a roller does not turn freely, polish the black coating with 400 grit or finer paper until it does.
  • Use Loctite only on the clutch housing threads, never on the roller pivot stud threads.
  • Install each roller with the shiny logo face against the stainless washer.

See all Hi-Torque clutch rollers, snowmobile belts and snowmobile parts.
