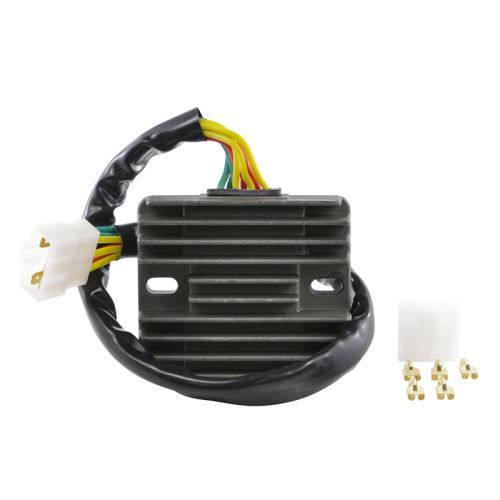

RMS Regulator Rectifier (Honda)

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 80 mm
Length: 92 mm
Height: 25 mm
Wires length: 500 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
