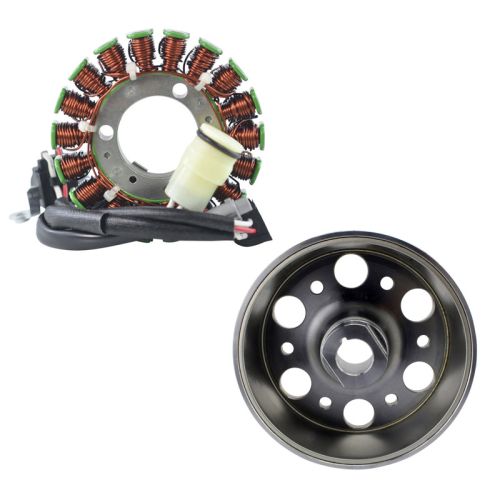

RMS Kit Stator + Flywheel (Yamaha)

Brand New Stator + Flywheel

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Pick up pulsar coil included
• Connector included
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of Stator:

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 110 mm
Length of pickup coil's wire to grommet: 220 mm

Other specifications :
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: White to White = 0.4 ohms +-20%
Pickup: Black to White = 250 ohms +-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 110 mm
Interior Diameter: 99 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 31 mm
Thickness (interior): 38 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
