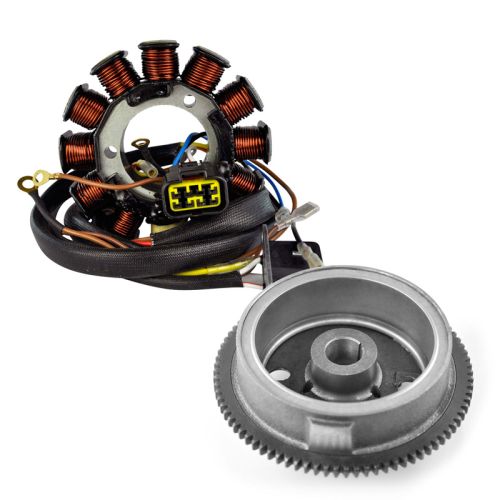

RMS Kit Stator + Flywheel (Polaris)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Two flywheels exist for Polaris 500cc models. This flywheel has the code FF97 stamped on its back. In doubt, please refer to specifications.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR & trade heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
-
Built to OEM size
Fits precisely in your ride: install it and forget it. -
Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment. -
High grade steel capping
Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator. -
Precise balancing
Eliminates crankshaft vibrations for longer engine longevity -
Shop with confidence
All products are tested.
Don't waste time with temporary solutions, and start fixing your ride like a pro!
Specifications:
Stator:
Dimensions :
Interior diameter : 47 mm
Exterior diameter : 114 mm
Thickness : 20 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 7
Number of plugs : 9
Number of pins : 12
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
Flywheel:
Dimensions:
Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm
