RMS 150W High Power Stator & Voltage Regulator Charging System Upgrade (Honda)

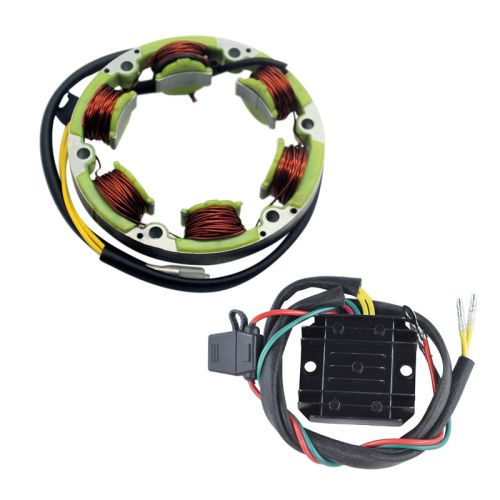

Brand New High Output Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

This kit outputs 25% more power than the OEM system (Approx. 150 watts) and will power a 55 watts headlight. This will allow the charging of the battery even when the headlight is on thanks to the higher voltage of this kit. This applies if you have an undamaged rotor working properly. For customers using Lithium-Ion (Li-ion), it might be necessary to contact battery manufacturer before installing this kit to ensure their product will accept a voltage of 14.5 volts sent by the regulator.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

• No assembly required
• Higher grade of electric components
• Charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions Stator :
Interior diameter : 80 mm
Exterior diameter : 130 mm
Thickness : 35 mm
Length of wires stator to grommet : 15 mm
Length of wires grommet to plug : 340 mm

Other specifications :
Number of wires : 2
Number of plugs : 2
Number of pins : 2

Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +/-20%

Dimensions Voltage Regulator Rectifier :
Width : 58 mm
Length : 68 mm
Height: 25 mm
Fixation holes center to center : 53 mm
Wires length: 300 mm & 600 mm

Other specifications :
Number of wires: 4
Number of plugs : 4
Number of pins : 4
