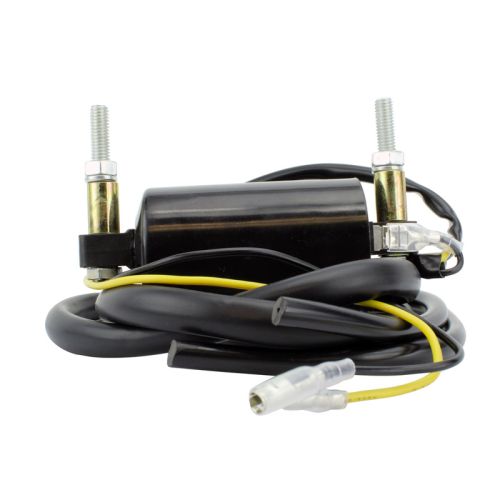

RMS External Ignition Coil 4.3 Ohms (Yamaha)

Brand new External Ignition Coil

• You must re-install your OEM spark plug cap(s).
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install..
• Highest grade of lamination materials.
• All products shipped are tested.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Width: 40 mm
Length: 65 mm
Height: 50 mm
Wires length: 600 mm
Fixation holes center to center: 90 mm
Resistance: 4.3 ohms

Warning:

This is a dual output coil, but will fit and work fine on Suzuki GS450 applications that used 2 single output coils. You will require 2 coils. Only use 1 spark plug wire (either is fine) per coil. The other spark plug wire can be removed from each coil, and the hole filled with RTV silicone.

Fitment notice:

Please Note: There is two possible ignition coil for the GTS 1000 1993 & 1994. This part is the OEM 4BH-82320-00-00. The other possible option is 4BH-82310-00-00.

Please compare your original part to our photos before buying.
