Koso North America | SKU:
BA085101
15% off

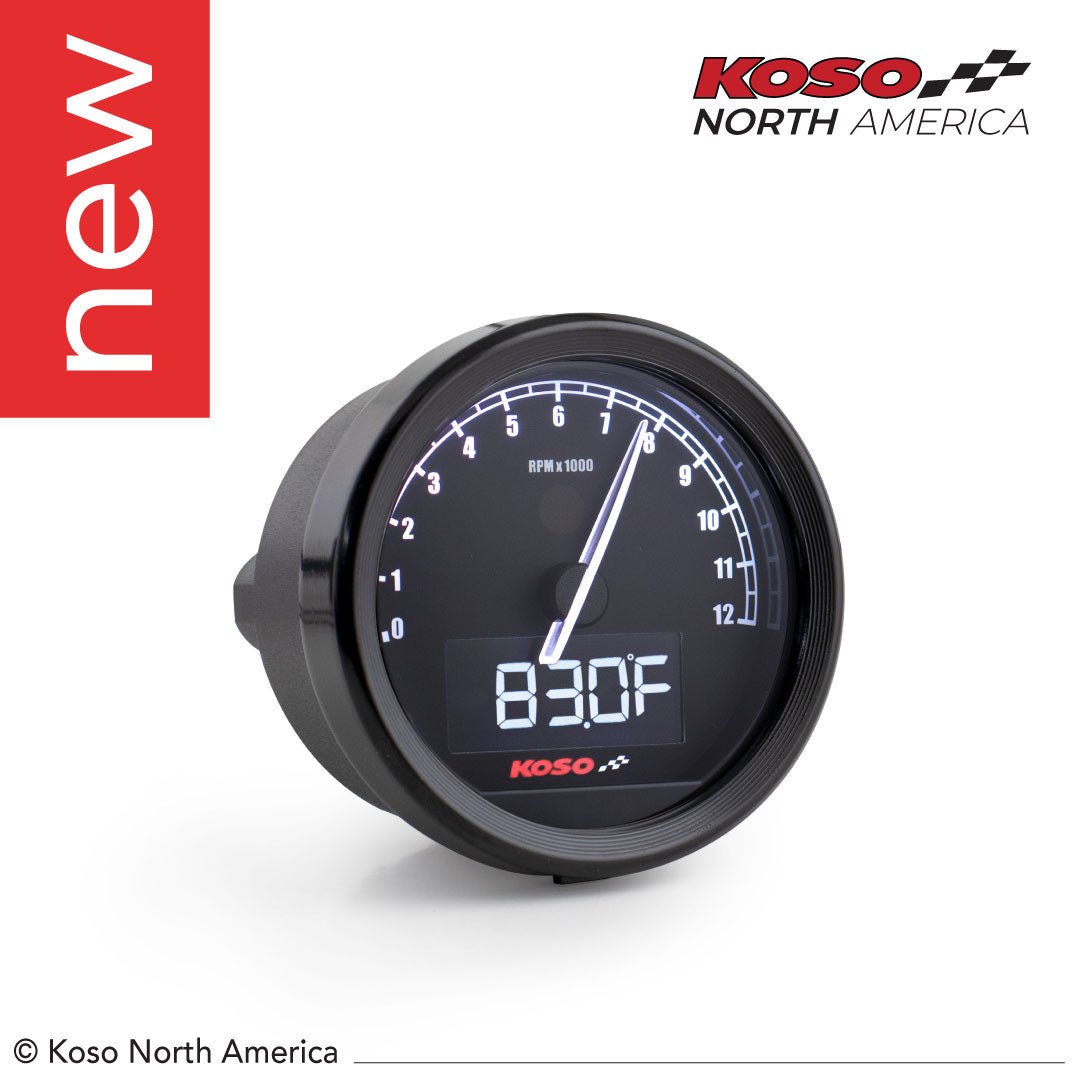

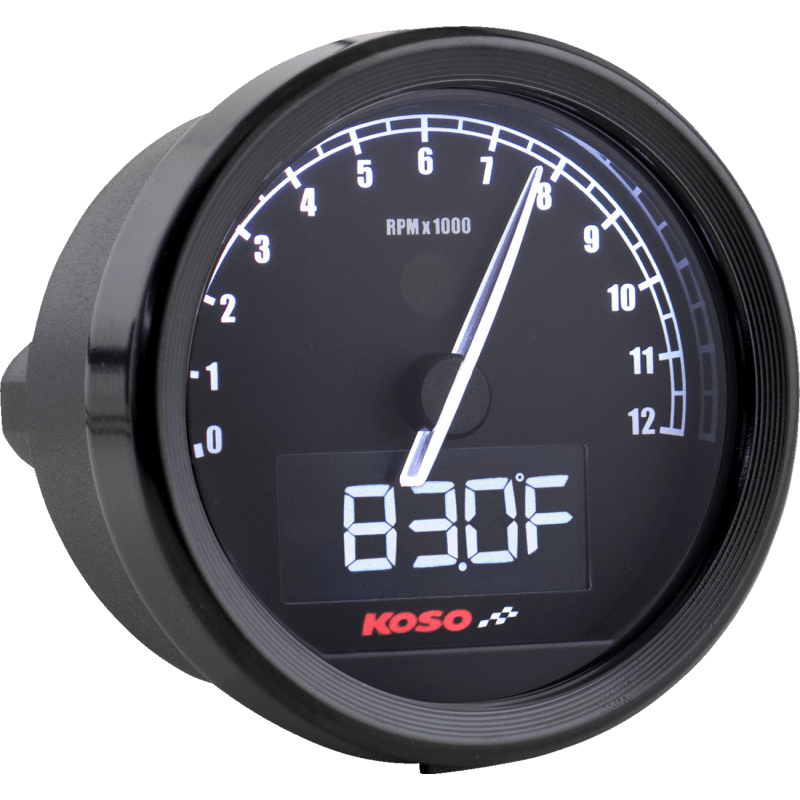

Koso North America TNT-05R D60 Tachometer
Sale price
$248.99
Regular price
$292.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
KOSO NORTH AMERICA TNT-05R TACHOMETER
Customize your bike with The TNT‑05R. This tachometer will give a modern look to any motorcycles with its changeable LCD display backlight colors and make it easy to read either it is day or night. Its warning function for temperature and voltage will protect your engine from being damaged.
Specifications
(R= Range U=Unit)
-
Tachometer
R: 0 ~ 12,000 RPM
U: 1,000 (Large grid), 500 RPM (small grid) -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C) -
Effective voltage
DC 12 V -
Indicator lights
Over-running light (red) -

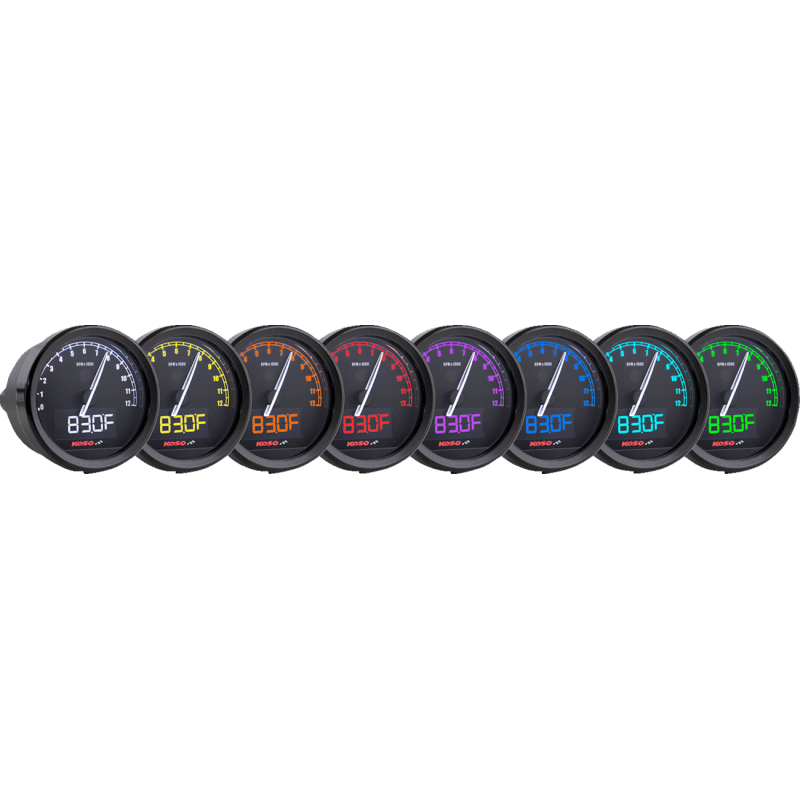

Backlight colors
White / Yellow / Orange / Red / Purple / Blue / Light blue / Green -
Volt meter
R: DC 8 ~ 18 V | Flashing Warning light ≤ value. -
Backlight brightness
R: 1/3 (darkest) ~ 3/3 (brightest)
-
Pre-Shift light warning
R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate
U: 100 RPM -
RPM input pulse
R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse) -
Max. rotating speed
R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid) -
RPM Shift-light
R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value -
Thermometer
R: 32 ~ 482 °F (0 ~ 250 °C)
U: 0.1 °F or °C (alternative) -
Over temperature warning
R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C)
