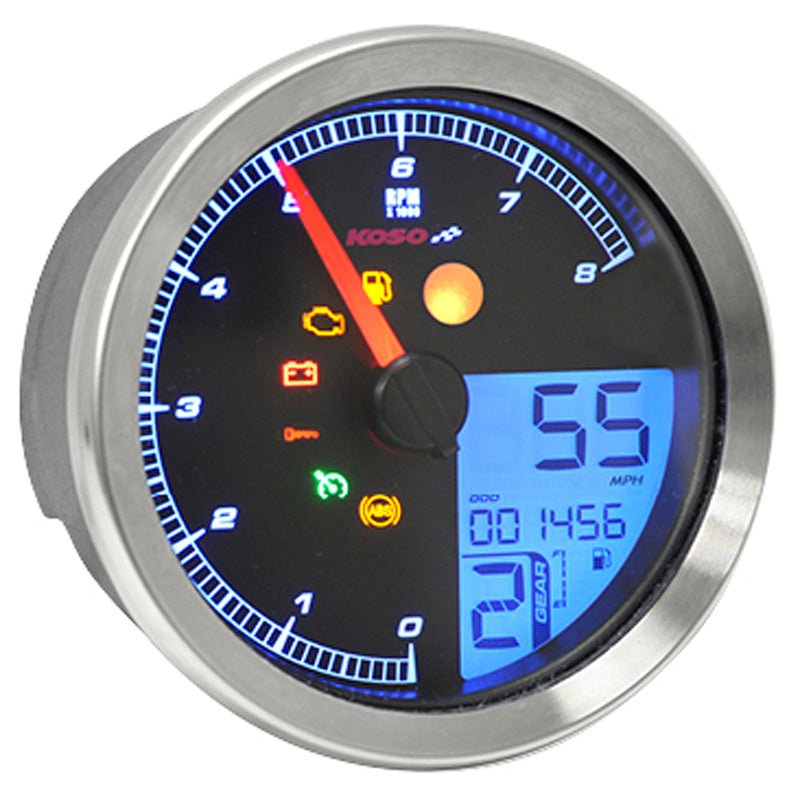

Koso North America HD-04 Multifunction Meter For Harley-Davidson

HD-04 | 4” multifunction meter | for Harley-Davidson® (silver)

You can now customize your sportster with our high‑quality plug & play meter that is equipped with a 8 color changeable LCD display. Its stepper motor provides a precise and fast response so that you can get accurate real time information. Some of the great functions this meter has to offer are : speed, RPM, indicator lights, fuel level, and gear position indicator. Available in silver or black bezel, this is a great modern update for your sportster.

 Specifications
(R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH or km/h
• Odometer
  R: 0 ~ 999,999 miles (km) U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 9,999.9 miles (km)
  U: 0.1 mile (km)
• Tachometer
  R: 0 ~ 8,000 RPM | U: 100 RPM
• Shift light warning
  R: 2,000 ~ 8,000 RPM
  U: 100 RPM Warning light on ≥ value
• Maximum RPM warning mode
  R: light on (F-OFF) flash (F-ON)
• Tire circumference
  R: 50 ~ 210 % | U: 1 %
• Engine temperature meter
  R: -40 ~ 419 °F (-40 ~ 215 °C)
  U: 1 °F or °C (alternative)

• Fuel level
  R: 6 levels | U: 1 level = 16.67%
• Clock
  R: 12 H or 24 H format
• Backlight colors
  White / Light Blue / Blue / Purple / Red / Orange / Yellow / Green
• Gear indicator
  R: Off, N, 1, 2, 3, 4, 5
• Indicator lights
  RPM shift light / Check engine /
  Oil level / High beam / Turn signals /
  ABS / Anti-theft
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Fits Harley 3 3/8” stock meter mounting cup models
