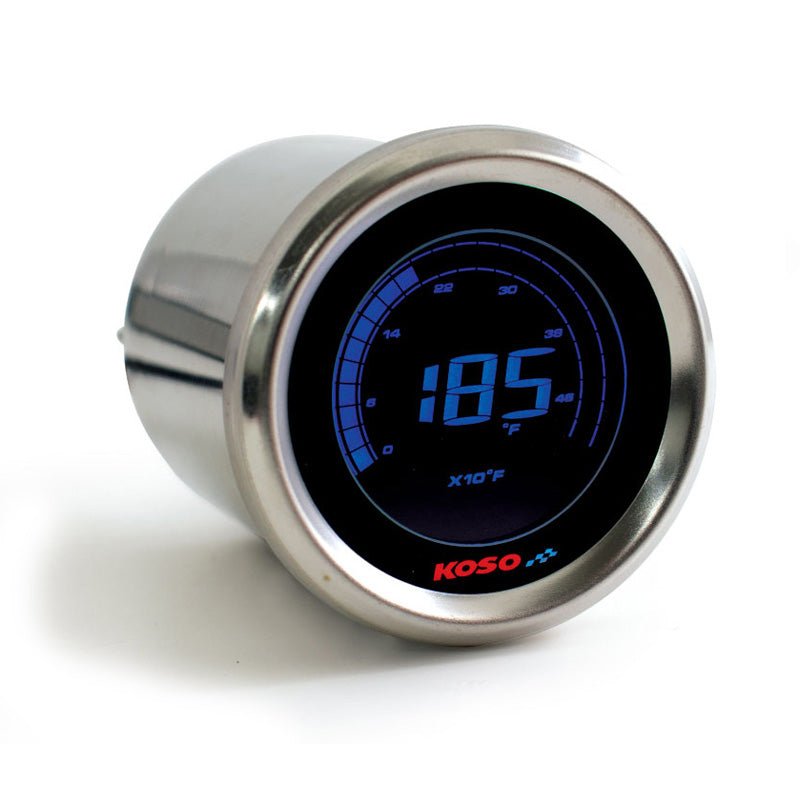

Koso North America Water Temperature Meter For Harley-Davidson

DL-01T | Water Temperature Meter | for Harley-Davidson®

Koso’s DL‑01 meters use a reverse LCD display so when the meter is turned off, the screen is deep black.

 Specifications
(R= Range U=Unit)

• Temperature level
  R: 32 ~ 500 °F (0 ~ 250 °C)
  U: 1 level = ± 20 °F or ± 10°C (alt)
• Digital temperature
  R: 32 ~ 500 °F (0 ~ 250 °C)
  U: 1 °F or 10°C (alt)
• Temperature warning
  R: 140 ~ 482 °F (60 ~ 250 °C)
  HI displayed when over temp
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Power
  DC 12 V
• Sensor included
  Temp. sensor: BF030000 1/8 (BSP) x 28
• Meter standard
  JIS D 0203
• Meter size
  D48 x 52 mm
• Meter weight
  ±117g
