Kimpex  |  SKU: SF-010-007745

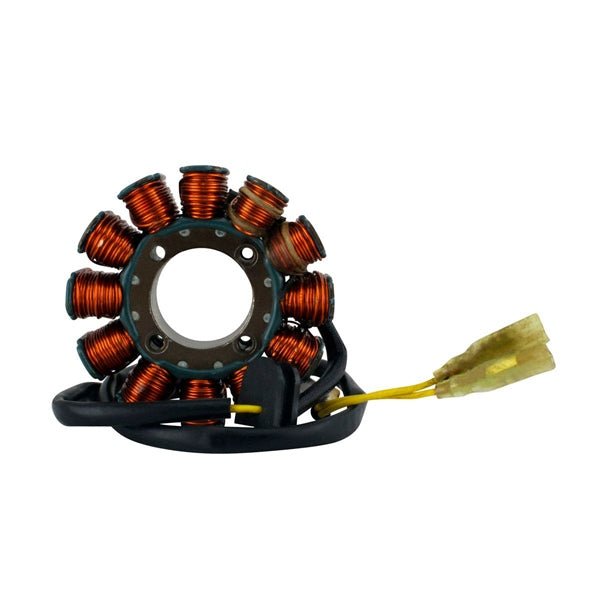

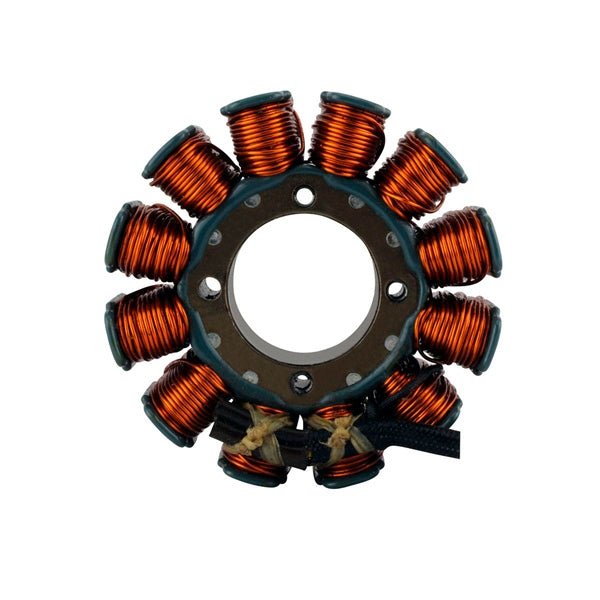

Kimpex Stator

$213.99 $236.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

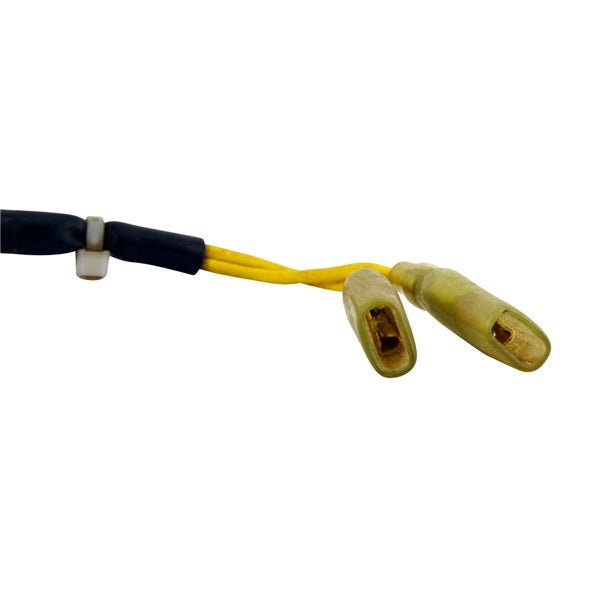

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-007745
  • Compatible Brand: Fits KTM
  • External Diameter (mm): 76
  • Internal Diameter (mm): 30
  • Number: 345260
  • Number of connectors: 2
  • Number of terminals: 2
  • Number of wires: 2
  • Original Product Type: Stators
  • Thickness (mm): 19
MakeModelYears
KTM450 SX-F2012-2015
KTM450 SX-F Factory Edition2013
KTM450 XC-F2013-2015
