Kimpex  |  SKU: R09-779-02

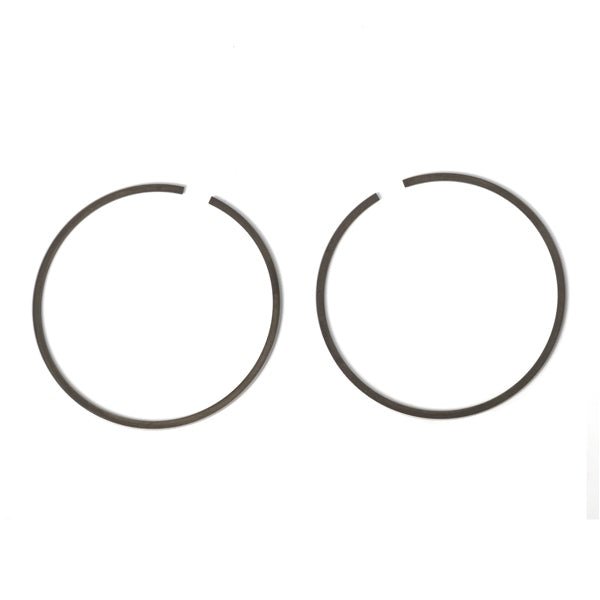

Kimpex Piston Replacement Ring Set

$7.99 $32.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
  • SKU: R09-779-02
  • Bore - Oversize: 0.50 mm
  • Bore - Standard: 76 mm
  • Compatible Brand: Fits Ski-doo
  • Cylinders: 2
  • Displacement: 553 cc
  • Engine type: 2-Strokes
  • Number: R09-779-02
  • Original Product Type: Piston Rings
MakeModelYears
SKI-DOOExpedition 550 Sport REV R F/C 136"2005-2006
SKI-DOOExpedition 550 Sport REV-XP ES/R F/C 154"2012-2020
SKI-DOOExpedition 550 Sport REV-XU ES/R F/C 154"2011
SKI-DOOExpedition 550 Sport RF ES/R F/C 136"2007-2008
SKI-DOOFreestyle Back Country 550 RF R F/C 136"2007-2009
SKI-DOOFreestyle Park 550 RF R F/C 121"2007-2008
SKI-DOOFreestyle Session 550 RF R F/C 121"2007
SKI-DOOGSX 550 REV ES/R F/C 121"2005-2009
SKI-DOOGSX 550 Sport REV-XP ES/R F/C 120"2010
SKI-DOOGTX 550 REV ES/R F/C 136"2005-2009
SKI-DOOGrand Touring 550 ES/R F/C 136"2003
SKI-DOOGrand Touring 550 Sport REV-XP ES/R F/C 137"2010-2015
SKI-DOOLegend 550 ES/R F/C 121"2003-2004
SKI-DOOLegend 550 GT ES/R F/C 121"2004
SKI-DOOMXZ 550 R F/C 121"2003-2004
SKI-DOOMXZ 550 REV R F/C 121"2005-2008
SKI-DOOMXZ 550 Sport REV-XP R F/C 120"2011-2014
SKI-DOOMXZ 550 TNT REV-XP R F/C 120"2010-2012
SKI-DOOMXZ 550 X REV R F/C 121"2006-2009
SKI-DOORenegade 550 Sport REV-XP R F/C 137"2010-2014
SKI-DOOSkandic 500 WT2015
SKI-DOOSkandic 550 REV-XU F/C2018
SKI-DOOSkandic 550 SUV ES/R F/C 156"2004-2010
SKI-DOOSkandic 550 SWT 2-Stroke2017
SKI-DOOSkandic 550 SWT ES/R F/C 156"2004-2008
SKI-DOOSkandic 550 SWT REV-XU F/C2018
SKI-DOOSkandic 550 SWT REV-XU F/C EURO2014-2015
SKI-DOOSkandic 550 Sport R F/C 136"2004
SKI-DOOSkandic 550 Tundra LT REV-XU ES/R F/C 154"2010-2013
SKI-DOOSkandic 550 Tundra LT RF ES/R F/C 154"2008-2009
SKI-DOOSkandic 550 Tundra REV-XU ES F/C 137"2010-2012
SKI-DOOSkandic 550 Tundra Sport REV-XU ES/R F/C 137"2010-2013
SKI-DOOSkandic 550 WT ES/R F/C 154"2012
SKI-DOOSkandic 550 WT ES/R F/C 156"2004-2011
SKI-DOOSkandic 550 WT REV-XU ES/R 154"2018-2019
SKI-DOOSkandic 550 WT REV-XU ES/R F/C 154"2013-2017, 2020
SKI-DOOSkandic 600 SWT e-tec REV-XU ES/R 156"2016-2017
SKI-DOOSkandic 600 WT e-tec REV-XU ES/R 154"2016-2017
SKI-DOOSummit 550 R F/C 136"2003-2004
SKI-DOOSummit 550 REV R F/C 136"2005-2009
SKI-DOOTundra 550 LT REV-XU ES/R F/C 154"2014-2020
SKI-DOOTundra 550 LT XP F/C Euro2014
SKI-DOOTundra 550 Sport REV-XU ES/R F/C 137"2014-2020
SKI-DOOTundra 550 Sport XP F/C Euro2014
SKI-DOOTundra 550 WT F/C2018
SKI-DOOTundra 550 WT RER-XU F/C EURO2014-2015
SKI-DOOTundra WT 2-Stroke Euro2017
