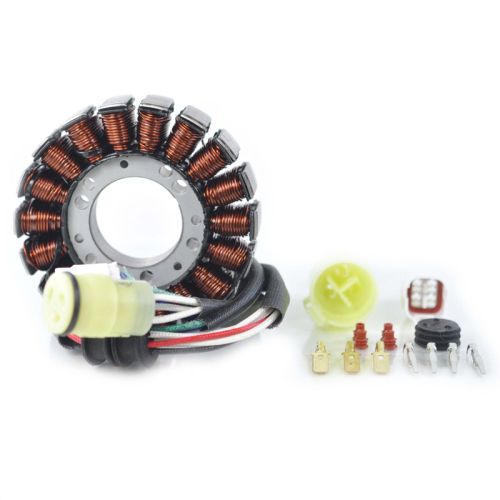

RMS High Output Stator 300 W (Yamaha)

Brand new high output aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34mm
Exterior diameter : 94mm
Thickness : 13mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 220mm
Length of pickup coil's wire to grommet : 100mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
