RMS Stator (Triumph)
Impossible de charger la disponibilité pour le Service de retrait
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

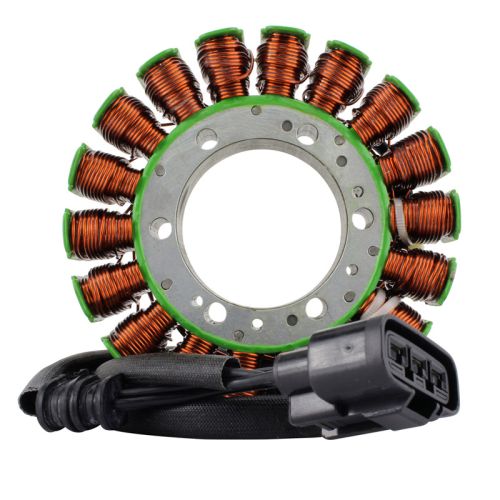

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimension :
Interior diameter : 54 mm
Exterior diameter : 125 mm
Thickness = 24 mm
Number of wires : 3
Number of terminals : 3
Wire resistance :
Alternator : Black between each Black = 0.04 ohms +/- 20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Stator failure on these Triumph motorcycles often affect the voltage regulator at a point where the defective voltage regulator will cause any new stator installed to fail prematurely. We highly recommend to replace your current voltage regulator with our voltage regulator # RMS022-105928. Where RMS900-107273 is the kit that fit the models.
