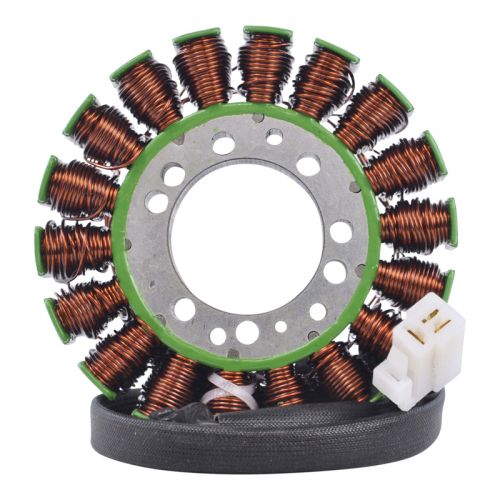

RMS Stator (Triumph)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Wire to wire resistance :
Alternator : Black between each Black = 0.5 ohms +/- 20%

Dimension :
Interior diameter = 42 mm
Exterior diameter = 115 mm
Width = 22 mm

Other specifications:
Number of wires = 3
Number of plugs = 1
Number of terminals = 3
Harness length Stator to grommet = 145 mm
Harness length grommet to plug = 450 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : There are 2 possibles stator for Triumph Daytona 955i 2002-2006, our product RM01395S fit on VIN 132513 and HIGHER. For vehicle with a VIN LOWER than 132512, please refer to OEM T1300350.
