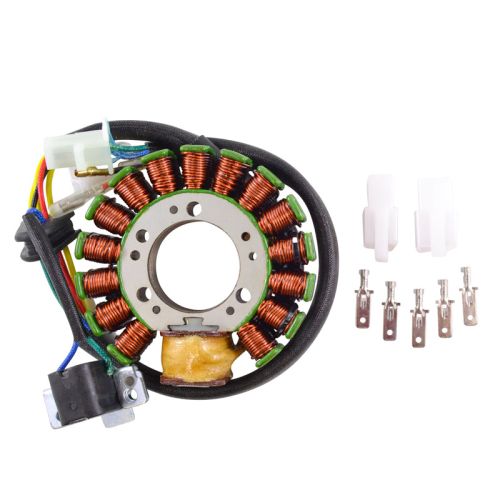

RMS Stator (Suzuki)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Stator

Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 12mm
Length of wires stator to plug : 400mm
Length of pickup coil's wire to plug : 380mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.2 ohms +/-20%
Pickup : Green to Blue = 425 ohms +/-20%
Source : Brown to Black = 330 ohms +/-20%

Pick-Up Coil

Dimensions:
Bracket center to center: 30mm
Wires length : 380mm

Other specifications:

Wire to wire resistance:
Blue to Green = 425 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
