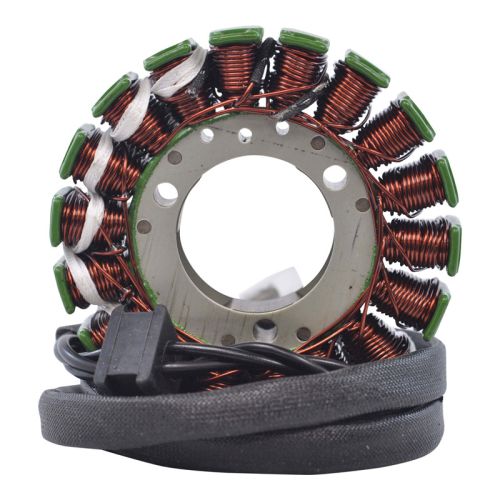

RMS Stator (Suzuki)
Impossible de charger la disponibilité pour le Service de retrait
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet : 300 mm
Length of wires grommet to plug : 620 mm
Other specifications:
Number of wires:3
Number of plugs: 3
Number of pins: 3
Wire to wire resistance:
Alternator : White between each White = 0.9 ohms +/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
