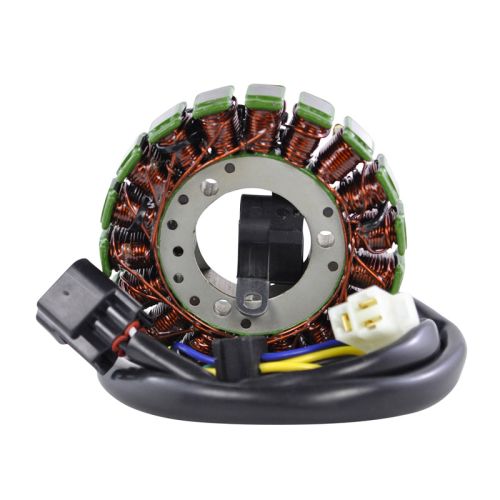

RMS High Output Stator

Brand new high output stator

• Direct replacement to your original unit
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: Yellow Between each Yellow = 0.7 ohms +/-20%
Alternator: Yellow to Ground O.L on display
Pickup: Blue to Green = 200 ohms +/-20%
Position Sensor: Black to White = 0.3 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
