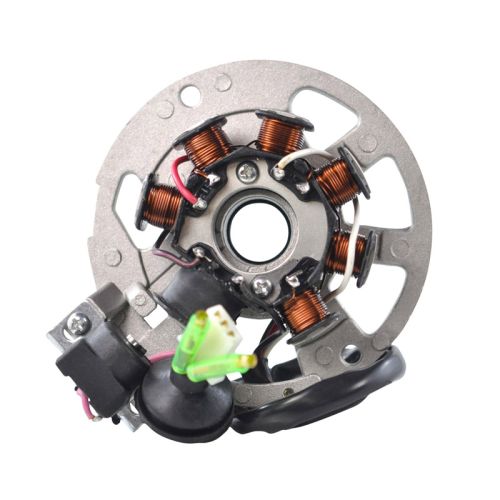

RMS Stator (Polaris)

Brand new 7-coil stator with 5 wires for two stroke engines

• 3-pin plug , 2 loose wires
• 2 bolt holes, 103mm bolt hole spacing.
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Specifications:

Dimensions :
Interior diameter : 79 mm
Exterior diameter : 27 mm
Thickness : 13 mm
Length of wires stator to grommet : 79 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : Red to White = 0.4 ohms +/-20%
Pickup : Pink to Black = 500 ohms +/-20%
Source : Black/Red to Black = 300 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
