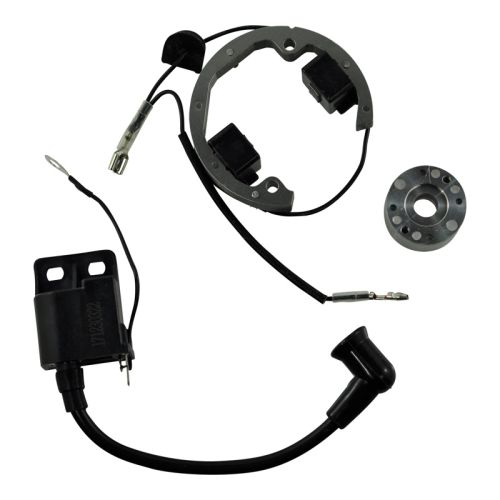

RMS Kit Stator + Rotor + Ignition Coil (KTM)

Brand new aftermarket stator + rotor + ignition coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator :

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Specifications:

Stator Dimensions :
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 148 mm

Other specifications :
Number of wires : 2
Number of plugs : 2

Alternator : Black to ground = 4.5 ohms +-20%

External Ignition Coil :
Distance between fixation holes: 20 mm
Wire Length: 51 mm
Resistance: 6.1 ohms

Rotor Dimensions :
Interior widest diameter : 12 mm
Interior narrowest diameter : 12 mm
Interior length : 19 mm
Exterior Diameter: 36 mm
Fixation holes center to center: 23 mm

Warning:

Please Note : If you have an older KTM50 with black "Morini Franco" engine this kit will not fit on you vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
