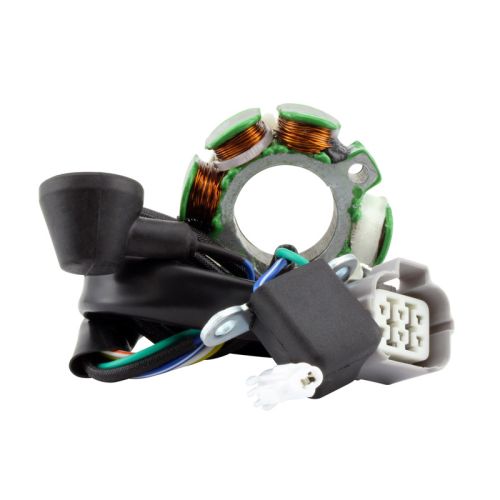

RMS Stator

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 375 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : White to Yellow = 3.0 ohms +/-20%
Pickup : Green to Blue/White = 120 ohms +/-20%
Source : White/Red to Black/Red = 38 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
