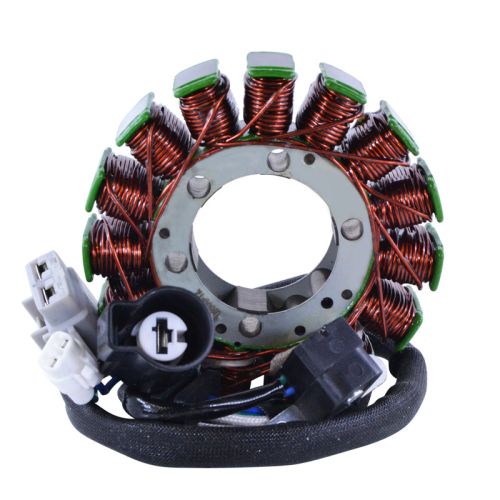

RMS Stator (Kawasaki)

Brand new aftermarket Generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +-20%
Pickup : Green to Blue = 500 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
