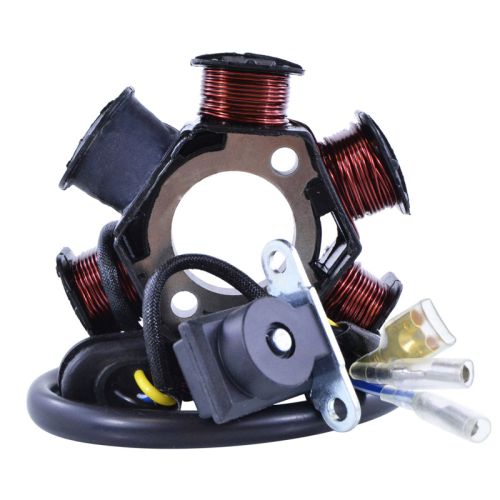

RMS Lighting Stator (Honda)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 32 mm
Length of wires stator to grommet : 185 mm
Length of wires grommet to terminals : 355 mm
Length of pickup coil's wire to grommet : 78 mm

Other specifications :
Number of wires : 3
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Ground = 0.4 ohms +-20%
Pickup : Blue/Yellow to Ground = 120 ohms +-20%
Source : Black/Red to Ground = 500 ohms +-20%

Warning:

Please Note: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY!
