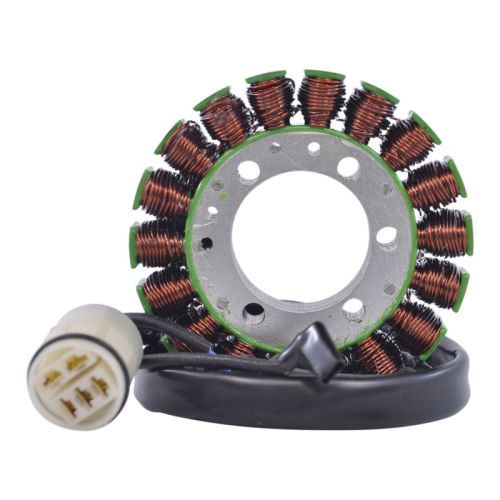

RMS Stator (Honda)
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 41mm
Exterior diameter: 106mm
Thickness: 21mm
Length of wires stator to grommet: 70mm
Length of wires grommet to plug: 500mm
Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
