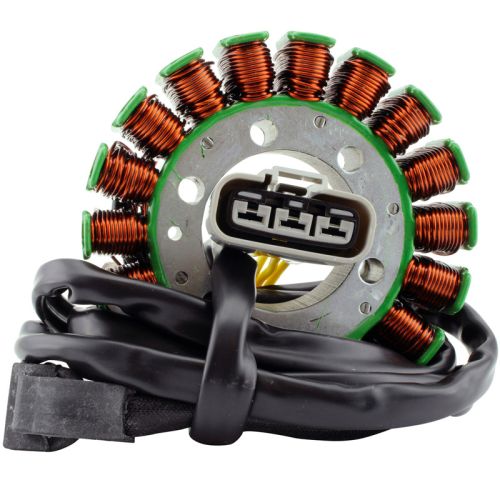

RMS Stator 480W (Can-AM)

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 24 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 1420 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Alternator :Yellow to Yellow = 0.7 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Please Note There are two possible stator for most of the Outlander models from 2016 through 2019. This stator is for all the models but the standard packages.
