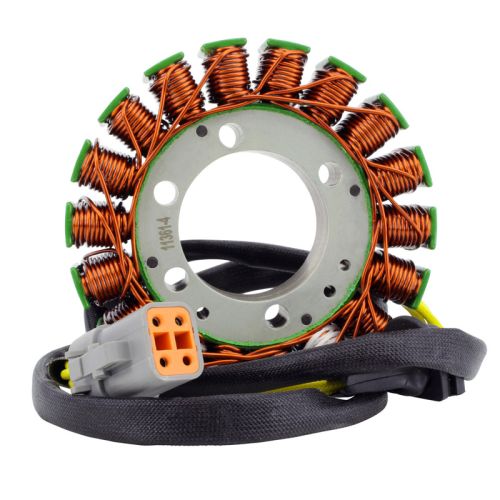

RMS Stator 420W (Can-AM)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All product shipped are tested

Please note: There are two different stators that fits a CAN-AM Outlander 800 cc 2015 and Renegade 1000 cc 2015. See specification tab for details. PLEASE VALIDATE THESE MEASUREMENTS WITH YOUR OLD STATOR BEFORE BUYING THIS PRODUCT

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Please note: There are two different stators that fits a CAN-AM Outlander 800 cc 2015 and Renegade 1000 cc 2015. See specification tab for details. PLEASE VALIDATE THESE MEASUREMENTS WITH YOUR OLD STATOR BEFORE BUYING THIS PRODUCT

Dimensions:
Interior diameter: 41 mm
Exterior diameter: 104 mm
Thickness: 30 mm Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 850 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of terminals: 3

Wire to wire resistance:
Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please Note There are two possible stators for most of the Outlander models from 2016 through 2019. This stator is only for the standard packages.
