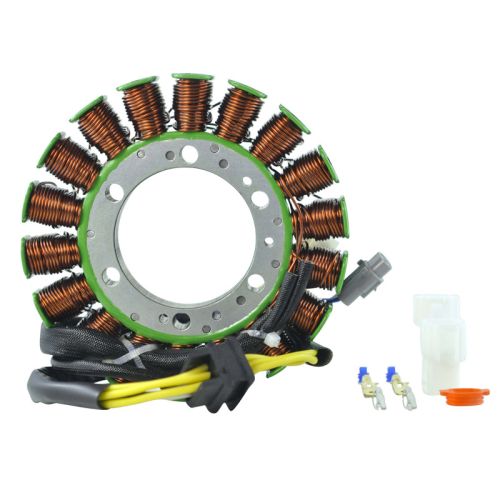

RMS Stator (Arctic Cat)
Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pickup coil included
- Connector included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions
Interior Diameter : 54 mm
Exterior Diameter : 126 mm
Thickness : 20 mm
Number of wires : 5
Number of plugs : 2
Alternator : Yellow to Yellow = 0.4 ohms +/- 20 %
Pickup Coil : Blue to White = 200 ohms +/- 20 %
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
