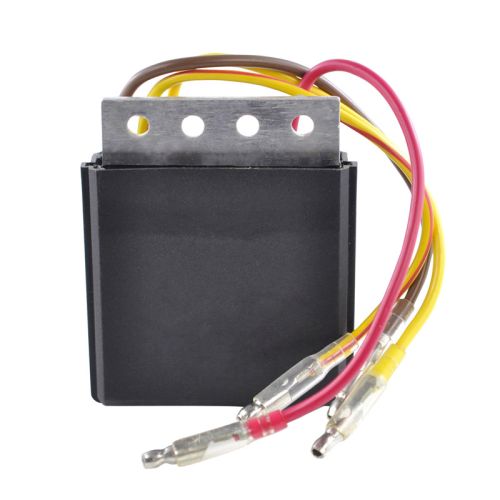

RMS Voltage Regulator Rectifier (Polaris)

Brand new improved voltage regulator rectifier

This product is a high quality voltage regulator rectifier includes the latest generation of our voltage regulation circuit to replace the unreliable OEM voltage regulator rectifier on various Polaris models. You can now count on a steady output voltage to send the right charge rate to the battery either at low or high RPMs.

• AC regulator rectifier
• Superior to the OEM unit, generate less heat
• For use with all standard halogen and quartz lights.
• Precise voltage control eliminates light burnout.
• Reduce flickering and dimming.
• Connector included
• Simple installation, direct replacement
• Works with all other OEM part
• All products are tested before they are shipped.

Even if the central aluminium core heat sink provide great heat dissipation, we recommend that you install the regulator on a very clean surface and that you bolt it tightly on the frame to ensure the natural heat dissipation through the metallic chassis.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Thickness : 19mm
Length : 64mm
Height: 74mm
Fixation holes center to center : 18mm
Wires length: 120mm

Other specifications :
Number of plugs : 4
Number of pins : 4
Minimum Charging Voltage: 13V +/- 0.5V
Maximum Charging Current: 6A-10A/50W-200W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
