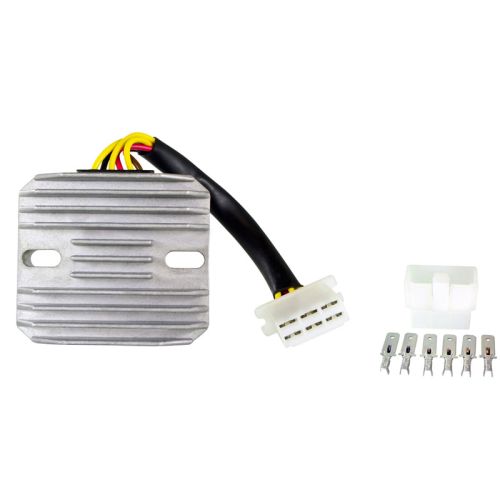

RMS Voltage Regulator (Kawasaki)

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 78 mm
Length: 80 mm
Height: 32 mm
Wires length: 170 mm
Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 1
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
