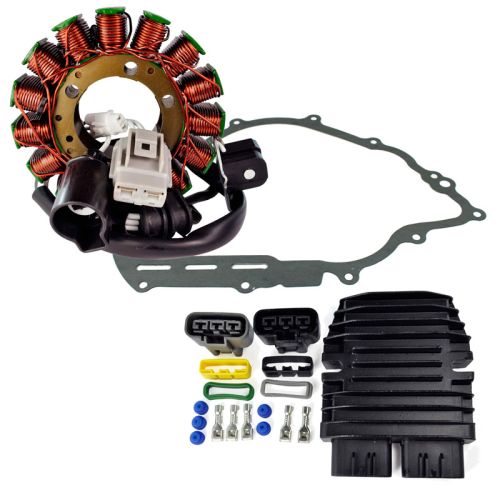

RMS Kit Stator + Mosfet Voltage Regulator Rectifier + Crankcase Gasket (Yamaha)

Brand new Kit Stator + Gasket + Mosfet Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Mosfet Voltage Regulator Rectifier

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Higher grade of electronic components
• Improved heat sink and charging capabilities

Specifications:

Dimensions Stator :
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%

Dimensions Mosfet Voltage Regulator Rectifier:
Width : 95 mm
Length : 110 mm
Height: 30 mm
Fixation holes center to center : 78 mm

Other specifications :
Number of plugs : 2
Number of pins : 6
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
